ifm Electronic E40099 Adapter E40099 1 pc(s)
EAN:
Part number:
Item no:
Product type
Adapter
Type
E40099
Content
1 pc(s)
Weight
0.0580 kg
UKCA
not relevant
Datasheet (PDF)
Highlights & Details

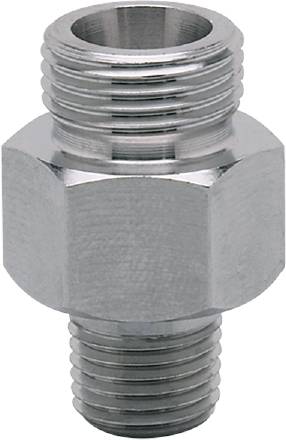

Ifm E40099 screw adapter
- For the installation of flow and temperature sensors in vessels or pipes
- Simple, fast and secure mounting
- Suitable for liquid and gaseous media
- Very high permissible over-pressure resistance
- Robust stainless steel design for use in harsh industrial environments
Technical specifications
- Dimensions [mm] M18 x 1.5
- Application: For industrial use
- Compressive strength [bar]: 100
- Pressure device guideline: A possible classification according to the DGRL must be performed according to application-specific and by the user / operator.
- Immersion depth [mm]: 13.5; (SID, SFD, TN probe)
- Weight [g]: 60,600
- Thread name M18 x 1.5
- Media: Liquid and gaseous media
- Process connection: Thread connection G 1/4
- M18 x 1.5 internal thread
- Safety instructions: The compatibility between Medium and product material must be checked in all applications.
- Product type
Adapter
- Type
E40099
- Content
1 pc(s)
- Weight
0.0580 kg
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3316106 ifm Electronic E40099 Adapter E40099 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3316106 ifm Electronic E40099 Adapter E40099 1 pc(s)
Description
Ifm E40099 screw adapter
