ifm Electronic E40113 Adapter E40113 1 pc(s)
EAN:
Part number:
Item no:
Product type
Adapter
Type
E40113
Content
1 pc(s)
Weight
0.0770 kg
UKCA
not relevant
Datasheet (PDF)
Highlights & Details

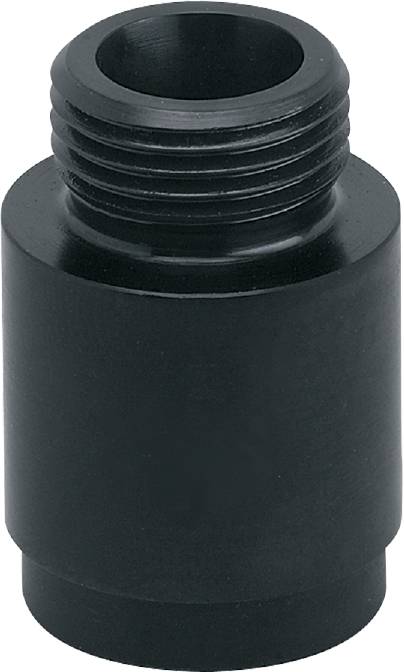

Ifm E40113 welding adapter
- Welding adapter for process sensors
- For use in industrial applications
- Robust design for use in harsh industrial environments
- High compressive strength
Technical specifications
- Dimensions [mm] M18 x 1.5
- Application: For industrial use
- Compressive strength [bar]: 300
- Pressure device guideline: A possible classification according to the DGRL must be performed according to application-specific and by the user / operator.
- Immersion depth [mm]: 15; (SID, SFD, TN probe)
- Weight [g]: 77,300
- Thread name M18 x 1.5
- Media: Liquid and gaseous media
- Process connection: Welding adapter Ø 22 mm
- M18 x 1.5 internal thread
- Safety instructions: The compatibility between Medium and product material must be checked in all applications.
- Product type
Adapter
- Type
E40113
- Content
1 pc(s)
- Weight
0.0770 kg
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3315647 ifm Electronic E40113 Adapter E40113 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3315647 ifm Electronic E40113 Adapter E40113 1 pc(s)
Description
Ifm E40113 welding adapter
