ifm Electronic E40129 Adapter E40129 1 pc(s)
EAN:
Part number:
Item no:
Product type
Adapter
Type
E40129
Content
1 pc(s)
UKCA
not relevant
Datasheet (PDF)
Highlights & Details

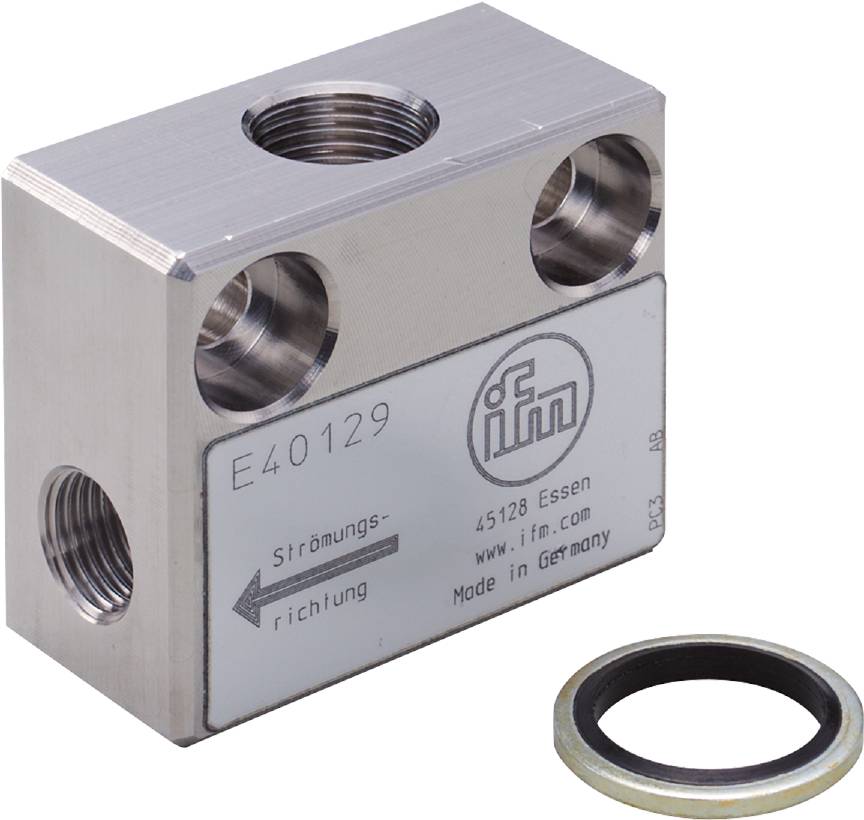

Ifm E40129 Flow Adapter (for small flow rates)
- Reliable detection of small flow quantities
- Easy installation of the flow sensor using an adapter
- Very high compressive strength
- Robust stainless steel design for use in harsh industrial environments
- Suitable for liquid and gaseous media
Technical specifications
- Dimensions [mm] M12 x 1
- Application: For industrial use
- Design: For flow sensors and current monitor
- Compressive strength [bar]: 300
- Pressure device guideline: A possible classification according to the DGRL must be performed according to application-specific and by the user / operator.
- Flow Range [ml/min]: 2...100
- Weight [g]: 156,500
- Thread name M12 x 1
- Media: Liquid and gaseous media
- Medium temperature [°C]: 0...80; (temperature gradient: 1 K/min)
- Installation: Via G1/8A screw-in screw connection, any mounting position
- Process connection G 1/8
- Sensor connection M12 x 1
- Safety instructions: The compatibility between Medium and product material must be checked in all applications.
- Product type
Adapter
- Type
E40129
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3318749 ifm Electronic E40129 Adapter E40129 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3318749 ifm Electronic E40129 Adapter E40129 1 pc(s)
Description
Ifm E40129 Flow Adapter (for small flow rates)
