ifm Electronic E40159 Adapter E40159 1 pc(s)
EAN:
Part number:
Item no:
Product type
Adapter
Type
E40159
Content
1 pc(s)
UKCA
not relevant
Datasheet (PDF)
Highlights & Details

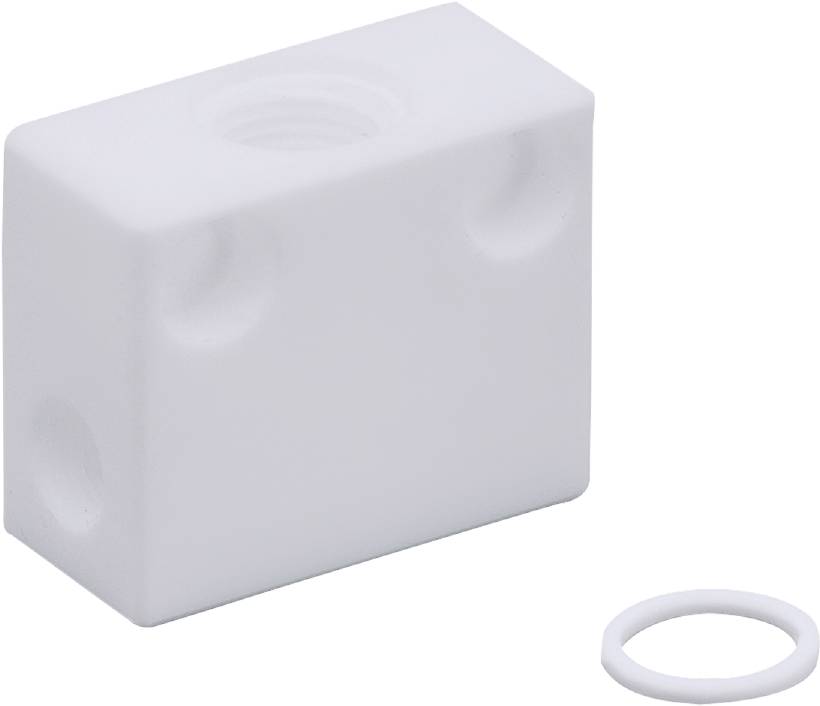

Ifm E40159 Flow Adapter (for small flow rates)
- Reliable detection of small flow quantities
- Easy installation of the flow sensor using an adapter
- High compressive strength
- Robust design for use in aggressive mediums
- Suitable for liquid and gaseous media
Technical specifications
- Design: For current sensors with ceramic probe G¼
- Compressive strength [bar]: 30
- Pressure device guideline: A possible classification according to the DGRL must be performed according to application-specific and by the user / operator.
- Flow Range [ml/min]: 2...50
- Weight [g]: 48,000
- Medium temperature [°C]: 0...80
- Installation: Via G1/8A screw-in screw connection, any mounting position
- Process connection G 1/8
- G 1/4 sensor connection
- Safety instructions: The compatibility between Medium and product material must be checked in all applications.
- Product type
Adapter
- Type
E40159
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3317968 ifm Electronic E40159 Adapter E40159 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3317968 ifm Electronic E40159 Adapter E40159 1 pc(s)
Description
Ifm E40159 Flow Adapter (for small flow rates)
