ifm Electronic E40163 Adapter E40163 1 pc(s)
EAN:
Part number:
Item no:
Product type
Adapter
Type
E40163
Content
1 pc(s)
UKCA
not relevant
Datasheet (PDF)
Highlights & Details

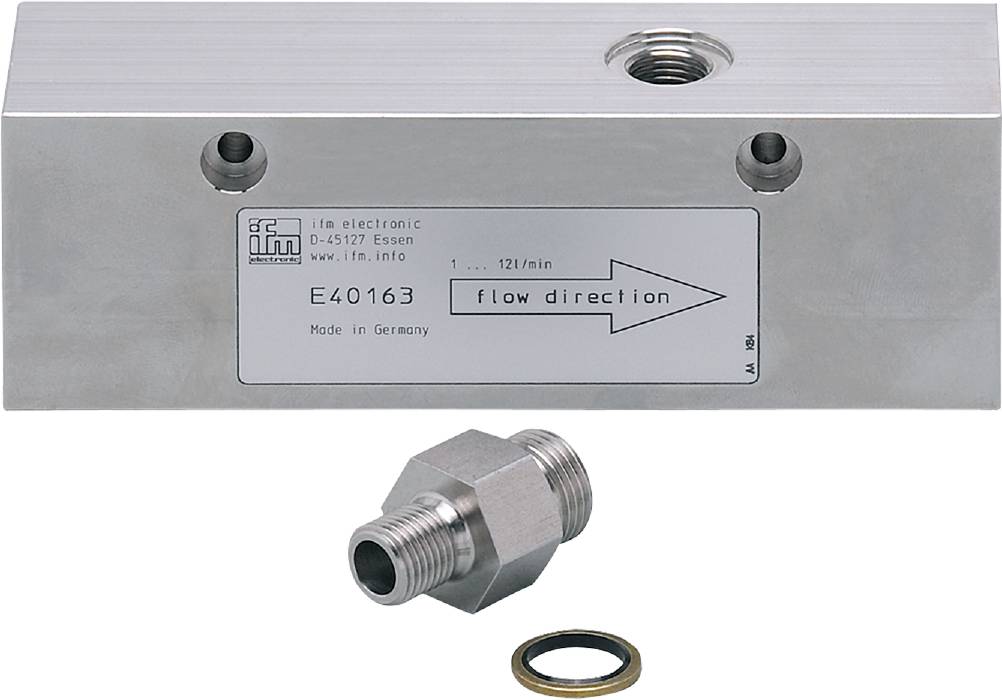

Ifm E40163 adapter block
- For the installation of flow sensors in pipes
- For a precise measurement of a defined flow rate
- Simple, fast and secure mounting
- Very high permissible over-pressure resistance
- Robust stainless steel design for use in harsh industrial environments
Technical specifications
- Flow range [l/min]: 1...12; ((SI1xxx); 1...16 (SI5xxx); factory calibration with water)
- Application: For industrial use
- Design: For SID, SF5 current sensors
- Compressive strength [bar]: 300
- Pressure device guideline: A possible classification according to the DGRL must be performed according to application-specific and by the user / operator.
- Weight [g]: 1789,500
- Media: Liquid and gaseous media
- Process connection G 3/4
- M18 x 1.5 sensor connection
- Safety instructions: The compatibility between Medium and product material must be checked in all applications.
- Product type
Adapter
- Type
E40163
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3320404 ifm Electronic E40163 Adapter E40163 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3320404 ifm Electronic E40163 Adapter E40163 1 pc(s)
Description
Ifm E40163 adapter block
