ifm Electronic E43212 Fluid level gauge coaxial tube E43212 1 pc(s)
EAN:
Part number:
Item no:
Product type

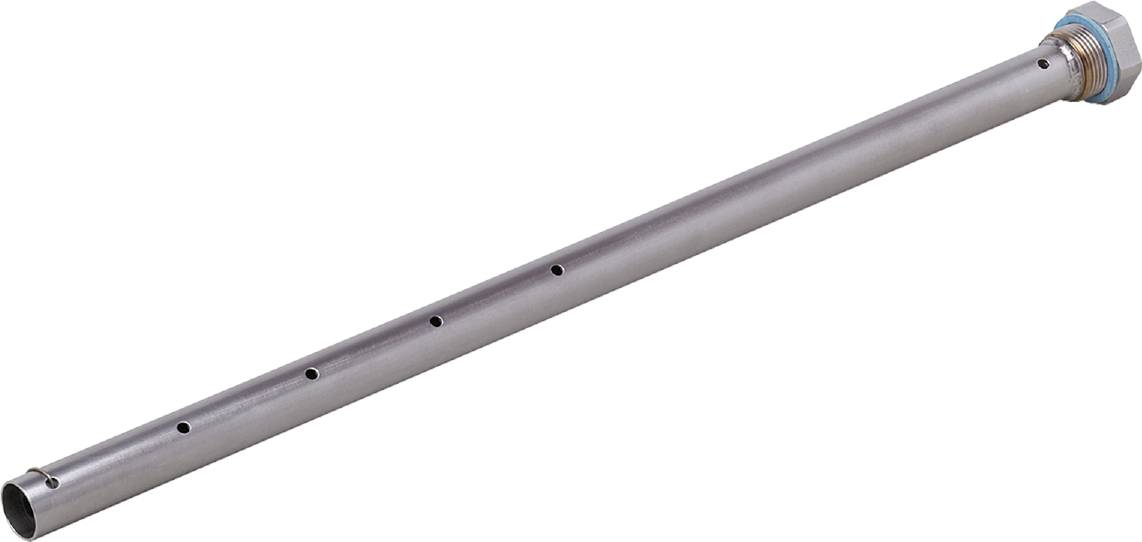

Fluid level gauge coaxial tube
Type
E43212
Content
1 pc(s)
Length
450 mm
Weight
0.2840 kg
Datasheet (PDF)
Highlights & Details
Ifm E43212 coaxial pipe
- For use in low-voltage media
- Reliable detection of oils and oil-based media
- Effective protection against electromagnetic interference
- No minimum distance to the tank wall necessary
Technical specifications
- Design: For fill level sensors LR
- Compressive strength [bar]: 16
- Weight [g]: 290,500
- Length L [mm]: 450
- MAWP for applications according to CRN [bar]: 16
- Medium temperature [°C]: -40...200
- Process connection: Thread connection G 3/4 External thread
- Sensor connection: Threaded connection G 3/4 inner thread
- Vacuum strength [mbar]: -1000
- Product type
Fluid level gauge coaxial tube
- Type
E43212
- Content
1 pc(s)
- Length
450 mm
- Weight
0.2840 kg
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3318678 ifm Electronic E43212 Fluid level gauge coaxial tube E43212 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3318678 ifm Electronic E43212 Fluid level gauge coaxial tube E43212 1 pc(s)
Description
Ifm E43212 coaxial pipe
