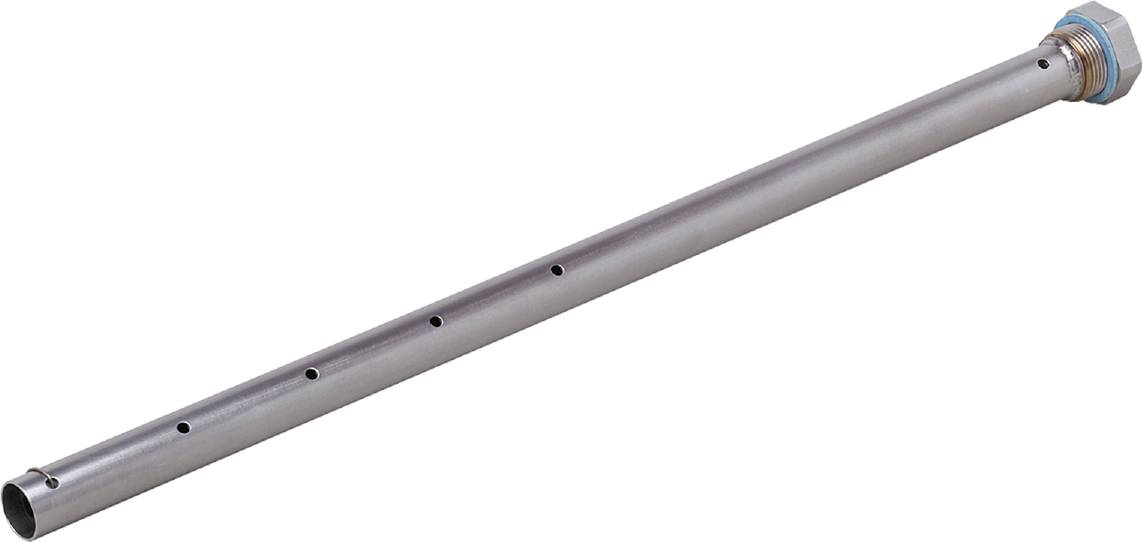

ifm Electronic E43215 Fluid level gauge coaxial tube E43215 1 pc(s)
EAN:
Part number:
Item no:
Product type
Fluid level gauge coaxial tube
Type
E43215
Content
1 pc(s)
Length
1200 mm
Weight
0.6750 kg
Datasheet (PDF)
Highlights & Details
Ifm E43215 coaxial pipe
- For use in low-voltage media
- Reliable detection of oils and oil-based media
- Effective protection against electromagnetic interference
- No minimum distance to the tank wall necessary
Technical specifications
- Design: For fill level sensors LR
- Compressive strength [bar]: 16
- Weight [g]: 690,000
- Length L [mm]: 1200
- MAWP for applications according to CRN [bar]: 16
- Medium temperature [°C]: -40...200
- Process connection: Thread connection G 3/4 External thread
- Sensor connection: Threaded connection G 3/4 inner thread
- Vacuum strength [mbar]: -1000
- Product type
Fluid level gauge coaxial tube
- Type
E43215
- Content
1 pc(s)
- Length
1200 mm
- Weight
0.6750 kg
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3319410 ifm Electronic E43215 Fluid level gauge coaxial tube E43215 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3319410 ifm Electronic E43215 Fluid level gauge coaxial tube E43215 1 pc(s)
Description
Ifm E43215 coaxial pipe
