ifm Electronic E43309 Adapter E43309 1 pc(s)
EAN:
Part number:
Item no:
Product type
Adapter
Type
E43309
Content
1 pc(s)
UKCA
not relevant
Datasheet (PDF)
Highlights & Details

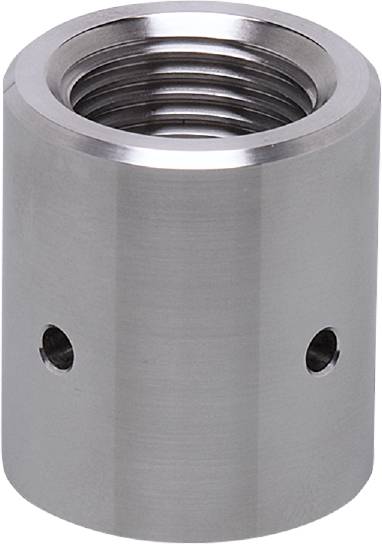

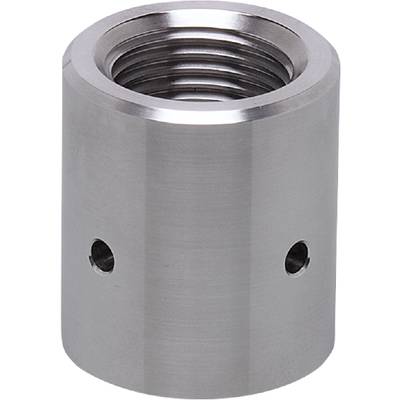

Ifm E43309 welding adapter
- Welding adapter for process sensors
- For use in industrial and hygienic applications
- Robust stainless steel design for use in harsh industrial environments
- High compressive strength
- With integrated leak borings
Technical specifications
- Design: For containers with leakage drilling
- Compressive strength [bar]: 50
- Pressure device guideline: A possible classification according to the DGRL must be performed according to application-specific and by the user / operator.
- Weight [g]: 166,000
- MAWP for applications according to CRN [bar]: 50
- Surface texture Ra/Rz of surfaces in contact with the media: 0.4 / 4
- Process connection: Welding adapter Ø 30 mm
- G 1/2 sealing cone. Sensor connection
- Safety instructions: The compatibility between Medium and product material must be checked in all applications.
- Product type
Adapter
- Type
E43309
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3316962 ifm Electronic E43309 Adapter E43309 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3316962 ifm Electronic E43309 Adapter E43309 1 pc(s)
Description
Ifm E43309 welding adapter
