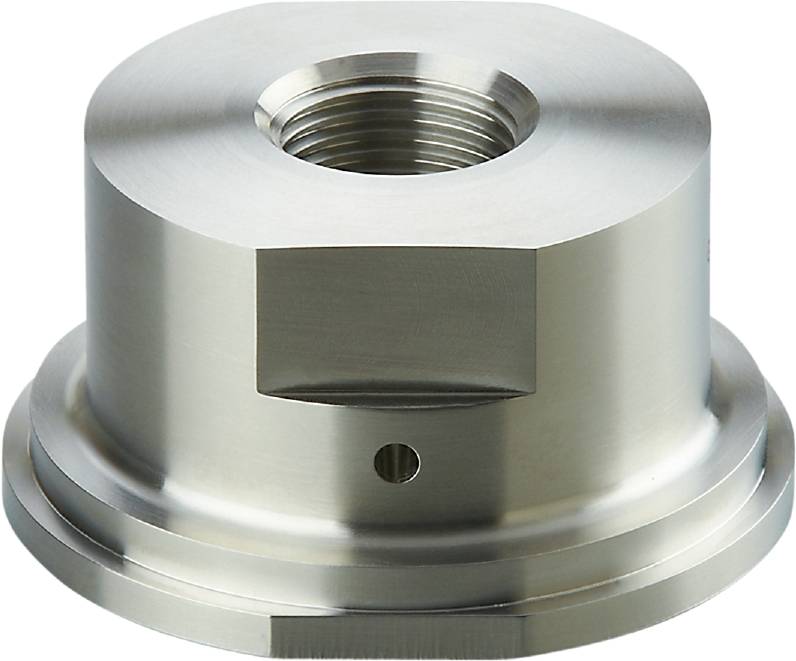

ifm Electronic E43344 Pipe fastener E43344 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pipe fastener
Type
E43344
Content
1 pc(s)
UKCA
not relevant
Datasheet (PDF)
Highlights & Details
Im E43344 pipe cable gland
- For the installation of process sensors in containers or pipes
- Simple, fast and secure mounting
- Particularly suitable for use in hygienic applications
- Adapter made of stainless steel for the requirements of the food and beverage industry
- High compressive strength
Technical specifications
- Sealing: Metal on PEEK
- Execution: With leakage boring
- Compressive strength [bar]: 16
- Pressure device guideline: A possible classification according to the DGRL must be performed according to application-specific and by the user / operator.
- Weight [g]: 570,500
- Standard DIN 11866 hygiene class: H3
- Surface texture Ra/Rz of surfaces in contact with the media: < 0.8 / 8
- Process connection: SMS pipe fitting DN50 (2")
- G 1/2 sealing cone. Sensor connection
- Safety instructions: The compatibility between Medium and product material must be checked in all applications.
- Product type
Pipe fastener
- Type
E43344
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3319012 ifm Electronic E43344 Pipe fastener E43344 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3319012 ifm Electronic E43344 Pipe fastener E43344 1 pc(s)
Description
Im E43344 pipe cable gland
