Buy ifm Electronic E43406 E43406 Data splitter M12 plug No. of digital outputs: 1

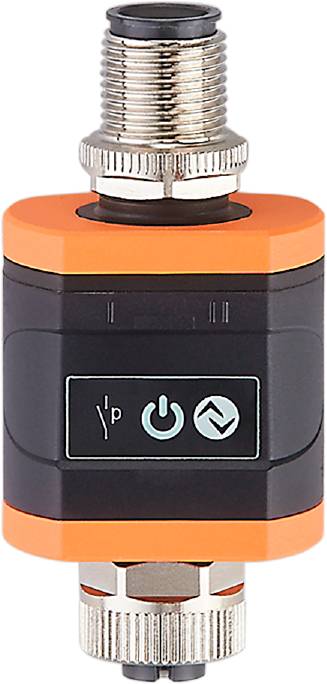

A black, cylindrical device with an orange upper rim. Two symbols are visible on the front: a power switch symbol and a cycle symbol.

Image similar

Product type

Data splitter

Interfaces

M12 plug

Type

E43406

No. of digital outputs

Manufacturer part #

E43406

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ifm E43406 IO-Link data splitter

Plug & Play enables a later installation without changing the system.
Quick provision of sensor data to higher-level IoT/Cloud systems.
Perfect support for service and maintenance personnel.
Easy decoupling of relevant IO-Link data for efficient diagnostics or process monitoring.

Technical specifications

Number of digital outputs: 1
Number of inputs and outputs: Number of digital outputs: 1
Display: Switching output: 1 x LED, yellow; operation: 1 x LED, green; IO-Link: 1 x LED, yellow
IO-Link Revision - IO-Link Device: 1.1
SDCI standard - IO-Link device IEC 61131-9
Transmission type - IO-Link Device: COM2 (38.4 kBaud)
Ambient temperature-1 [°C]: -25...60
Application: For retrofitting existing IO-Link systems; for non-IO-Link-enabled systems
Short-circuit protection version: Synchronised
Output function: Normally open / normally closed contact
Output signal: Switching signal; IO-Link
Standby delay time [s]: < 2; (for communication; reaction time switching signal: Response time device added with IO-Link process cycle time)
Special feature: Gold-plated contacts
Operating voltage [V]: 18...30 DC; (master side; control/system side: 20...30 DC)
Continuous current carrying capacity of the switching output DC [mA]: 200
Electrical version: PNP
Total number of inputs and outputs: 1; (control/system side)
Weight [g]: 90,000
IO-Link revision - IO-Link Master: 1.0; 1.1
Communication interface: IO-Link
Short-circuit-proof: Yes
Storage temperature [°C]: -25...70
max. Voltage drop switch output DC [V]: 2.5
Min Process cycle time - IO-Link Device [ms]: 4.2
MTTF: 307
Rated voltage DC [V]: 24
Profiles - IO-Link Device: Identification and Diagnosis (0x4000)
IP 67 protection
Protection class III
SDCI standard - IO-Link Master IEC 61131-9
SIO mode - IO-Link device: Yes
Plug connection: 1.Plug - Pin layout: 0001 - Plug connection: 1 x M12; Coding: A; contacts: Gold-plated / 2.Can - Pin layout: 0017 - Connector: 1 x M12; Coding: A; contacts: Gold-plated
Power consumption [mA]: < 17; (on both sides)
Overload-proof: Yes
Transmission type - IO-Link Master: COM1 (4.8 kBaud); COM2 (38.4 kBaud); COM3 (230.4 kBaud)
Supported master port class - IO-Link Device: A.
Supported master port class - IO-Link Master: A / B.
Reverse polarity protection: Yes (master side)
