ifm Electronic E60066 Mounting accessory E60066 1 pc(s)
EAN:
Part number:
Item no:
Product type
Mounting accessory
Type
E60066
Content
1 pc(s)
RoHS-compliant
Yes
Weight
0.0350 kg
Datasheet (PDF)
Highlights & Details

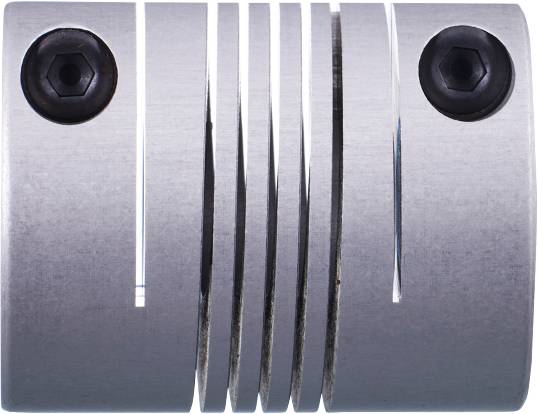

Ifm E60066 spiral coupling with clamp connection
- Game-free transmission of rotary movements
- Effective vibration absorption
- Good compensation of evictions
- Low torsion spring stiffness
- Small restoring forces
Our service for you
Technical specifications
- Dimensions [mm]: Ø 25 / L = 32
- Tightening torque [Nm]: Tightening torque screws: 120 Ncm
- Outer diameter D [mm]: 25
- Weight [g]: 34,500
- Internal diameter 1 [mm]: 6
- Internal diameter 2 [mm]: 10
- Clamping screw [mm]: M4 x 12 - ISO 4762 (2x)
- Length [mm]: 32
- Max. Axial shaft offset [mm]: ± 0.5
- Max. Mechanical rotational speed [rpm]: 6000
- Max. Radial shaft offset [mm]: ± 0.35
- Max. Angle offset [°]: ± 4.0
- Depth of clamping hub [mm]: 8
- Product type
Mounting accessory
- Type
E60066
- Content
1 pc(s)
- RoHS-compliant
Yes
- Weight
0.0350 kg
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3318343 ifm Electronic E60066 Mounting accessory E60066 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3318343 ifm Electronic E60066 Mounting accessory E60066 1 pc(s)
Description
Ifm E60066 spiral coupling with clamp connection
