ifm Electronic E60118 Mounting accessory E60118 1 pc(s)
EAN:
Part number:
Item no:
Product type
Mounting accessory
Type
E60118
Content
1 pc(s)
RoHS-compliant
Yes
UKCA
not relevant
Datasheet (PDF)
Highlights & Details

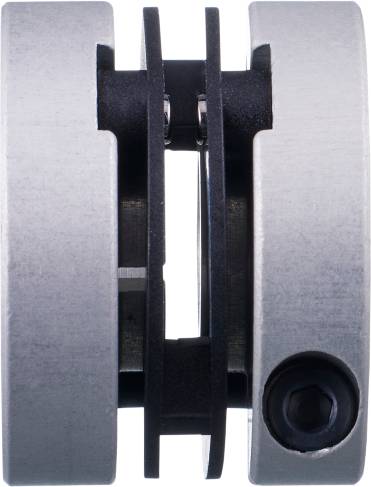

Ifm E60118 spring-disc coupling electrically insulating
- Game-free transmission of rotary movements
- Effective vibration absorption
- Good compensation of evictions
- Low torsion spring stiffness
- Small restoring forces
Our service for you
Technical specifications
- Dimensions [mm]: Ø 30 / L = 22
- Tightening torque [Nm]: Tightening torque screws: 120 Ncm; spring disc coupling: 60 Ncm
- Outer diameter D [mm]: 30
- Torsion spring stiffness [Nm/wheel]: 50
- Weight [g]: 29,900
- Internal diameter 1 [mm]: 10
- Internal diameter 2 [mm]: 10
- Clamping screw [mm]: M3 x 10 - ISO 4762 (2x)
- Length [mm]: 22
- Max. Axial shaft offset [mm]: ± 0.4
- Max. Mechanical rotational speed [rpm]: 12000
- Max. Radial shaft offset [mm]: ± 0.3
- Max. Angle offset [°]: ± 2.5
- Depth of clamping hub [mm]: 7
- Product type
Mounting accessory
- Type
E60118
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3318480 ifm Electronic E60118 Mounting accessory E60118 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3318480 ifm Electronic E60118 Mounting accessory E60118 1 pc(s)
Description
Ifm E60118 spring-disc coupling electrically insulating
