ifm Electronic E60193 Mounting accessory E60193 1 pc(s)
EAN:
Part number:
Item no:
Product type
Mounting accessory
Type
E60193
Content
1 pc(s)
UKCA
not relevant
Datasheet (PDF)
Highlights & Details

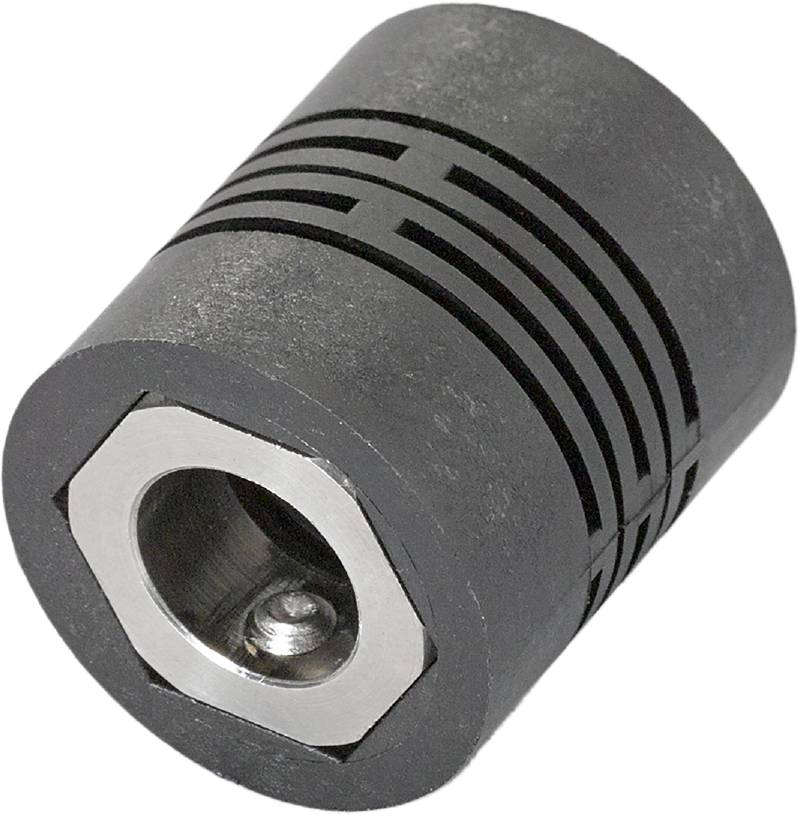

Ifm E60193 jack coupling
- Game-free transmission of rotary movements
- Effective vibration absorption
- Good compensation of evictions
- Low torsion spring stiffness
- Small restoring forces
Technical specifications
- Dimensions [mm]: Ø 22 / L = 24
- Tightening torque [Nm]: Tightening torque screws: 120 Ncm
- Outer diameter D [mm]: 22
- Weight [g]: 18,600
- Internal diameter 1 [mm]: 10
- Internal diameter 2 [mm]: 10
- Clamping screw [mm]: M4 x 6 - ISO 4029 (2x)
- Length [mm]: 24
- Max. Axial shaft offset [mm]: ± 0.2
- Max. Mechanical rotational speed [rpm]: 10000
- Max. Radial shaft offset [mm]: ± 0.3
- Max. Angle offset [°]: ± 3.0
- Depth of clamping hub [mm]: 6.4
- Product type
Mounting accessory
- Type
E60193
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3318287 ifm Electronic E60193 Mounting accessory E60193 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3318287 ifm Electronic E60193 Mounting accessory E60193 1 pc(s)
Description
Ifm E60193 jack coupling
