ifm Electronic E60216 Mounting accessory E60216 1 pc(s)
EAN:
Part number:
Item no:
Product type
Mounting accessory
Type
E60216
Content
1 pc(s)
RoHS-compliant
Yes
Datasheet (PDF)
Highlights & Details

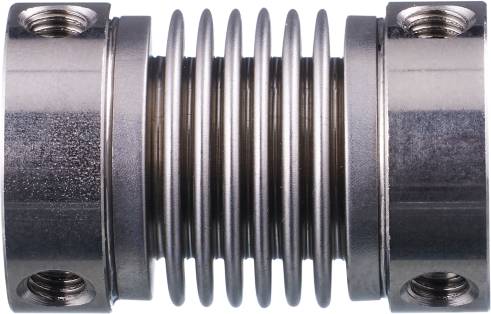

Ifm E60216 Bellows coupling
- Game-free transmission of rotary movements
- Effective vibration absorption
- Good compensation of evictions
- Low torsion spring stiffness
- Small restoring forces
Our service for you
Technical specifications
- Dimensions [mm]: Ø 20 / L = 29
- Tightening torque [Nm]: Tightening torque screws: 150 Ncm
- Outer diameter D [mm]: 20
- Weight [g]: 33,000
- Internal diameter 1 [mm]: 10
- Internal diameter 2 [mm]: 10
- Clamping screw [mm]: M4 x 4 - ISO 4029 (4x)
- Length [mm]: 29
- Max. Axial shaft offset [mm]: ± 0.4
- Max. Mechanical rotational speed [rpm]: 10000
- Max. Radial shaft offset [mm]: ± 0.25
- Max. Angle offset [°]: ± 4.0
- Depth of clamping hub [mm]: 6.4
- Product type
Mounting accessory
- Type
E60216
- Content
1 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 3319216 ifm Electronic E60216 Mounting accessory E60216 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3319216 ifm Electronic E60216 Mounting accessory E60216 1 pc(s)
Description
Ifm E60216 Bellows coupling
