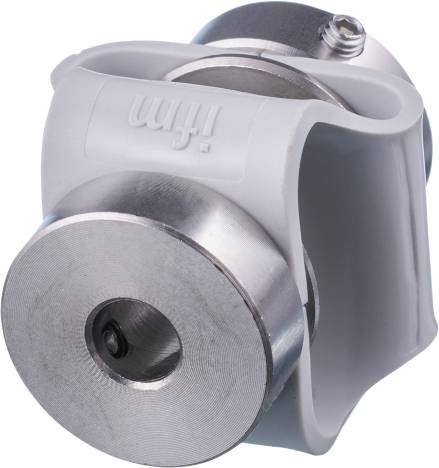

Image similar
Image similar
ifm Electronic E61435 Mounting accessory E61435 1 pc(s)
EAN:
Part number:
Item no:
Product type
Mounting accessory
Type
E61435
Content
1 pc(s)
UKCA
not relevant
Datasheet (PDF)
Highlights & Details
Ifm E61435 double strap coupling
- Double loop coupler
Technical specifications
- Ambient temperature-1 [°C]: -30...80
- Tightening torque [Nm]: Tightening torque screws: 100 Ncm
- Outer diameter D [mm]: 29
- Torsion spring stiffness [Nm/wheel]: 13
- Weight [g]: 27,600
- Internal diameter 1 [mm]: 6
- Internal diameter 2 [mm]: 6
- Clamp screw [mm]: M3 x 4 - ISO 4029 A2 (4x)
- Length [mm]: 29
- Max. Axial shaft offset [mm]: ± 2
- Max. Mechanical rotational speed [rpm]: 3000
- Max. Radial shaft offset [mm]: ± 2
- Max. Angle offset [°]: ± 10
- Depth of clamping hub [mm]: 9
- Product type
Mounting accessory
- Type
E61435
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3316973 ifm Electronic E61435 Mounting accessory E61435 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3316973 ifm Electronic E61435 Mounting accessory E61435 1 pc(s)
Description
Ifm E61435 double strap coupling
