ifm Electronic E61439 Mounting accessory E61439 1 pc(s)
EAN:
Part number:
Item no:
Product type
Mounting accessory
Type
E61439
Content
1 pc(s)
UKCA
not relevant
Datasheet (PDF)
Highlights & Details

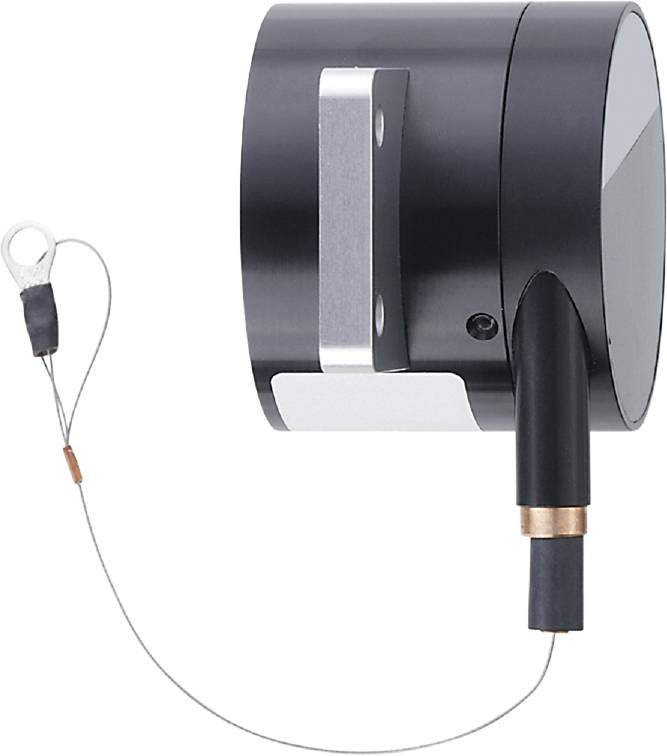

Ifm E61439 rope pull mechanism
- Rope pull-wire mechanism for rotary encoders
Technical specifications
- Ambient temperature-1 [°C]: -20...85
- Repeatability ± 0.006 % FSO
- Design: For rotary encoders with 58 mm synchronous flange and 6 mm full shaft
- Mounting flange: Synchronous flange
- Accuracy ± 0.02% FSO
- Weight [g]: 598,500
- Head flange diameter [mm]: 58
- Storage humidity [%]: 5...95; (non-condensing)
- Storage temperature [°C]: -40...85
- Max. Measuring length [mm]: 1900
- Cable connection: 5.5; (eyelet)
- Rope diameter [mm]: 0.45
- Rope drum circumference [mm]: 150
- Shaft design: Solid shaft
- Shaft diameter [mm]: 6
- Product type
Mounting accessory
- Type
E61439
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3320938 ifm Electronic E61439 Mounting accessory E61439 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3320938 ifm Electronic E61439 Mounting accessory E61439 1 pc(s)
Description
Ifm E61439 rope pull mechanism
