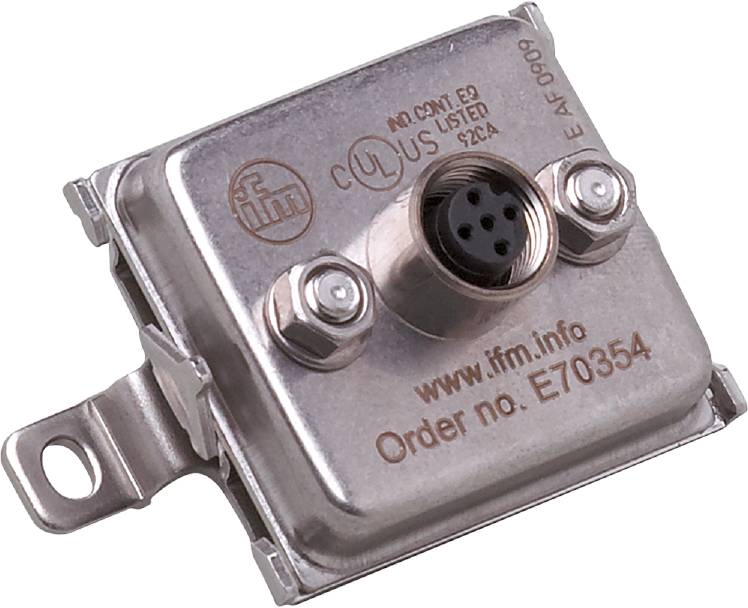

ifm Electronic E70354 Ribbon cable terminal E70354 1 pc(s)
EAN:
Part number:
Item no:
Product type
Ribbon cable terminal
Type
E70354
Content
1 pc(s)
RoHS-compliant
Yes
UKCA
yes
Datasheet (PDF)
Highlights & Details
Ifm E70354 flat cable outlet
- For the transition from AS-i / AUX flat cable to M12 connector
- Hygienic design for the requirements of the food and beverage industry
- Simple and fast connection using penetration technology
- Resistant to high pressure cleaning with aggressive cleaning agents
- Large operating temperature range and high protection class
Technical specifications
- Ambient temperature-1 [°C]: -30...80
- Tightening torque [Nm]: 2.5; (fixing nuts)
- Design AS-i / 24 V
- Operating voltage [V]: 26.5...31.6 DC; (AS-i)
- OPERATING VOLTAGE AUX DC [V]: 18...32
- Weight [g]: 112,300
- Max. Height above NN [m]: 2000
- Max. Permissible relative humidity [%]: 80; (31°C; linear decreasing to 50 (40°C))
- PROTECTION CLASS IP 67; IP 68; IP 69K
- Protection class III
- Plug connection: Socket - pin layout: 0017 - plug connection: 1 x M12; coding: A; tightening torque: 1.2...1.4 Nm
- Current carrying capacity total [A]: 4; (S-i: 2 ; UX: 2 )
- Pollution level: 2
- Product type
Ribbon cable terminal
- Type
E70354
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3317293 ifm Electronic E70354 Ribbon cable terminal E70354 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3317293 ifm Electronic E70354 Ribbon cable terminal E70354 1 pc(s)
Description
Ifm E70354 flat cable outlet
