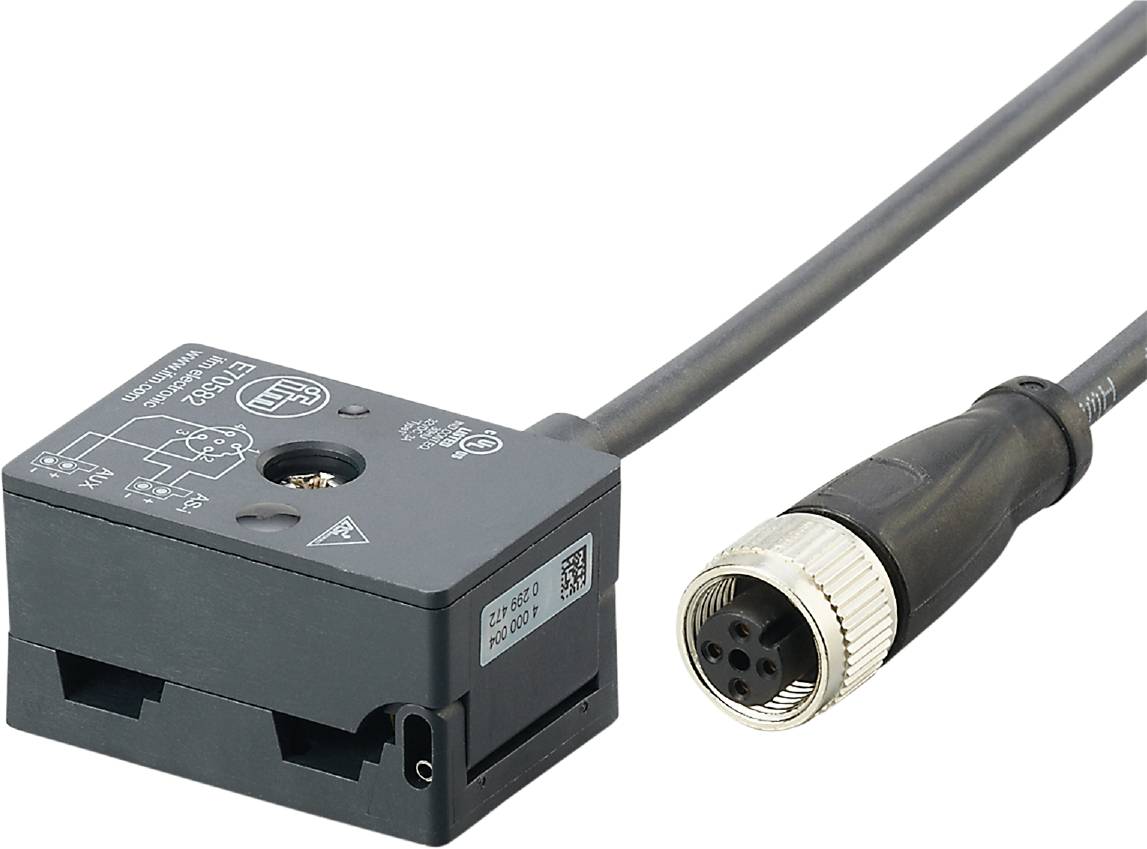

ifm Electronic E70582 Ribbon cable terminal E70582 1 pc(s)
EAN:
Part number:
Item no:
Product type
Ribbon cable terminal
Type
E70582
Content
1 pc(s)
RoHS-compliant
Yes
UKCA
yes
Datasheet (PDF)
Highlights & Details
Ifm E70582 flat cable outlet
- For the transition from AS-i flat cable to M12 plug connection
- For expansion of the AS-i network using stub cables
- Simple and fast connection using penetration technology
- High protection class to meet the requirements of harsh industrial ambient
Technical specifications
- Ambient temperature-1 [°C]: -25...75
- Tightening torque [Nm]: 1.65
- Application: Distribution of the AS-i voltage and the external 24 V supply to M12 socket
- Electrical design: AS-i; (24V)
- Weight [g]: 89,000
- Cable: 1 m, PUR, Ø 4.3 mm, 4 x 0.34 mm²
- IP 67 protection
- Protection class III
- Connector: Pin layout: 0017 - Connector: M12; Coding: A; Grip body: PUR; Tightening torque: ...1.65 Nm
- Current rating per module / slot [A]: 4
- Product type
Ribbon cable terminal
- Type
E70582
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3316980 ifm Electronic E70582 Ribbon cable terminal E70582 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3316980 ifm Electronic E70582 Ribbon cable terminal E70582 1 pc(s)
Description
Ifm E70582 flat cable outlet
