ifm Electronic E80121 PSU E80121 1 pc(s)
EAN:
Part number:
Item no:
Product type
PSU
Type
E80121
Connector
M12
IP rating
IP40
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details

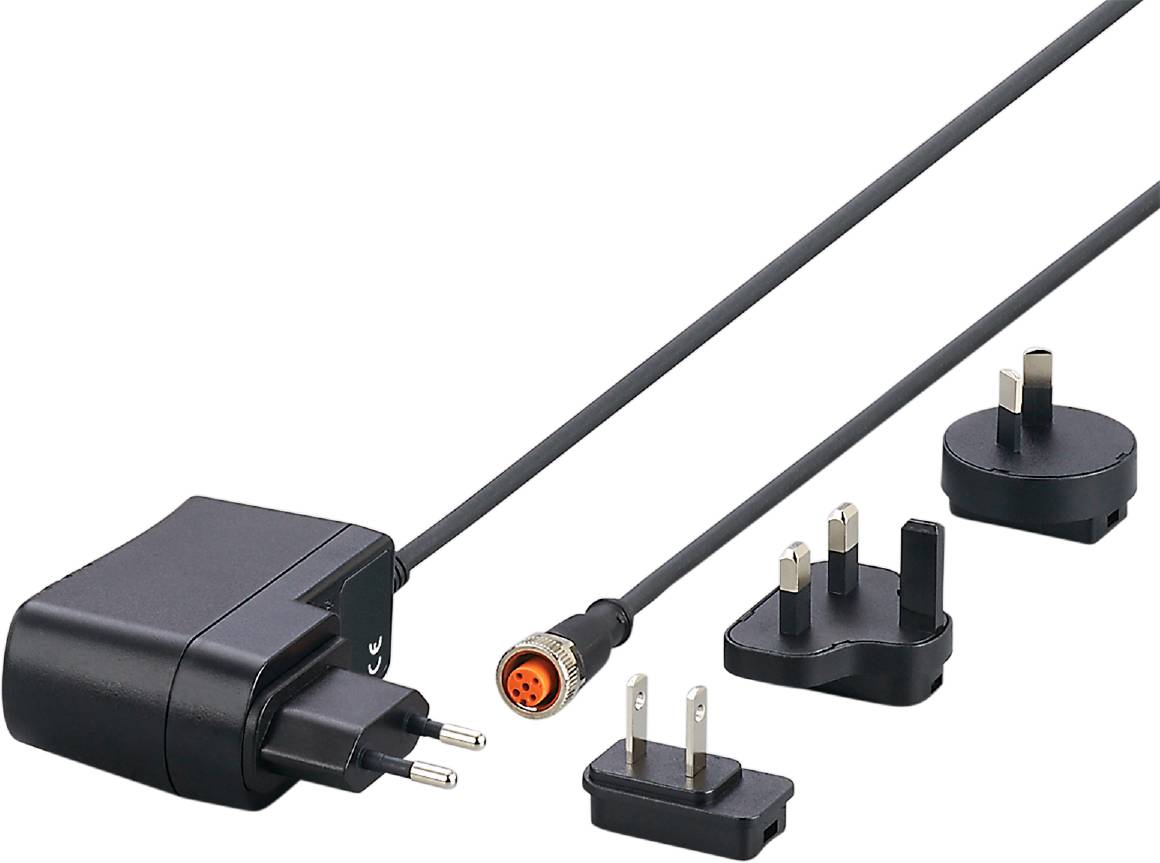

Ifm E80121 plug power supply
- Reliable supply of sensors with 24 V DC operating voltage
- Particularly space-saving design
- Simple connection thanks to proven M12 connector
Technical specifications
- Ambient temperature-1 [°C]: 0...40
- Output voltage DC [V]: 24
- Output current total [A]: 1
- Input voltage range AC [V]: 100...240
- Input current (rated voltage 230 V AC / 50 Hz) [A]: 0.75
- Weight [g]: 254,500
- Cable: 2 m; 2 x 0.5 mm²
- Max. Remaining ripple [mV]: 300
- Nominal frequency AC [Hz]: 50...60
- IP 40 protection (M12 connector IP 69K)
- Protection class: II
- Plug connection: Pin layout: Zero plug connection 1 x M12
- Efficiency (nominal voltage 230 V AC / 50 Hz) [%]: 86.8
- Product type
PSU
- Type
E80121
- Connector
M12
IP40
- Content
1 pc(s)
- RoHS-compliant
Yes
- Weight
0.2550 kg
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3318008 ifm Electronic E80121 PSU E80121 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3318008 ifm Electronic E80121 PSU E80121 1 pc(s)
Description
Ifm E80121 plug power supply
