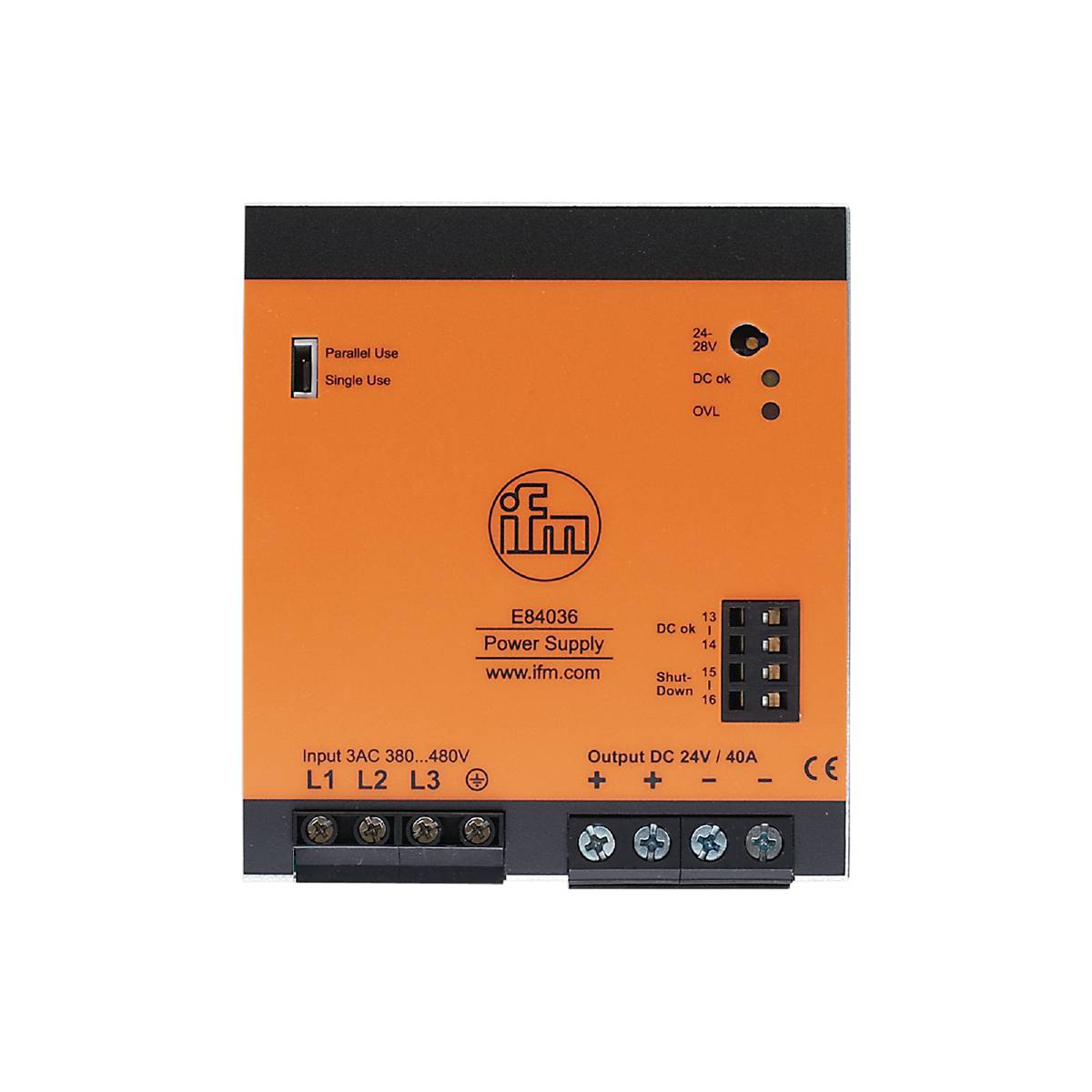

ifm Electronic E84036 PSU E84036 1 pc(s)
EAN:
Part number:
Item no:
Product type
PSU
Type
E84036
Max. operating voltage
230 V AC
Operating voltage
230 V AC (max)
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
Ifm E84036 switched mode power supply 24 V DC
- For regulated power supply for control systems, sensors, actuators and industrial electronics
- Low power loss thanks to Hohem efficiency
- High power failure bridging time
- Deactivation of the device is possible by means of a signal transmitter
- High power reserves
Technical specifications
- Dimensions [mm] 124 x 110 x 130.7
- Number of output circuits: 1
- Display: DC ok 1 x LED; overload 1 x LED
- Ambient temperature-1 [°C]: -25...70
- Design DC-OK-Signal: Relay output
- Output power (permanent) [W]: 960
- Output power (short term) [W]: 1440
- Output voltage [V]: Adjustable, output voltage according to SEL, PEL
- Output voltage DC [V]: 24...28
- RATING DC-OK SIGNAL: 60 V DC (0.3 A) / 30 V DC (1 A) / 30 V AC (0.5 A)
- Operating voltage tolerance [%]: 15...20
- DERATING [W/K]: 24 (60...70 °C)
- Input voltage range AC [V]: 380...480
- Input current (rated voltage 400 V AC / 60 Hz) [A]: 1.65
- Input current (rated voltage 480 V AC / 50 Hz) [A]: 1.35
- Peak switch-on current (nominal voltage 400 V AC / 60 Hz) [A]: 4.5
- Peak switch-on current (nominal voltage 480 V AC / 50 Hz) [A]: 4.5
- Switch-on current limitation: Yes
- External input protection ≥ B-6 A / ≥ C-6 A
- Frequency AC [Hz]: 47...64
- Weight [g]: 1754,500
- Field ready for connection / terminals: Screw terminals:
- Short-circuit-proof: Yes
- Storage temperature [°C]: -40...85
- Power factor (nominal voltage 400 V AC / 50 Hz): 0.88
- Power factor (nominal voltage 480 V AC / 50 Hz): 0.90
- PFC power factor correction: Satisfied
- Power reserve [%]: 50
- Max. Output current at max. Output voltage [A]: 34.3
- Max. Output current at min. Output voltage [A]: 40
- Max. Output current, short-term at max. Output voltage [A]: 51.5
- Max. Output current briefly at min. Output voltage [A]: 60
- Max. Remaining ripple [mV]: 100
- Max. Permissible relative humidity [%]: 95; (IEC 60068-2-30)
- Mounting type: Support rail; (TH35 (EN 60715))
- Nominal voltage AC [V]: < 400
- Power outage bridging time (nominal voltage 400 V AC / 60 Hz) [ms]: 25
- Power outage bridging time (nominal voltage 480 V AC / 50 Hz) [ms]: 25
- Regenerative resistance [V]: 35
- IP 20; (EN 60529)
- Protection class I; (IEC 61140)
- Overload-proof: Yes
- Overload response: Output current constant
- Voltage surge protection: Yes; (< 32 DC)
- Power loss (nominal voltage 400 V AC / 60 Hz) [W]: 47.3
- Power loss (nominal voltage 480 V AC / 50 Hz) [W]: 48.4
- Pollution level 2; (IEC 62103: Conductive contamination not permitted)
- Efficiency (nominal voltage 400 V AC / 60 Hz) [%]: 95.3
- Efficiency (nominal voltage 480 V AC / 50 Hz) [%]: 95.2
- Product type
PSU
- Type
E84036
- Max. operating voltage
230 V AC
- Operating voltage
230 V AC (max)
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3321595 ifm Electronic E84036 PSU E84036 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3321595 ifm Electronic E84036 PSU E84036 1 pc(s)
Description
Ifm E84036 switched mode power supply 24 V DC
