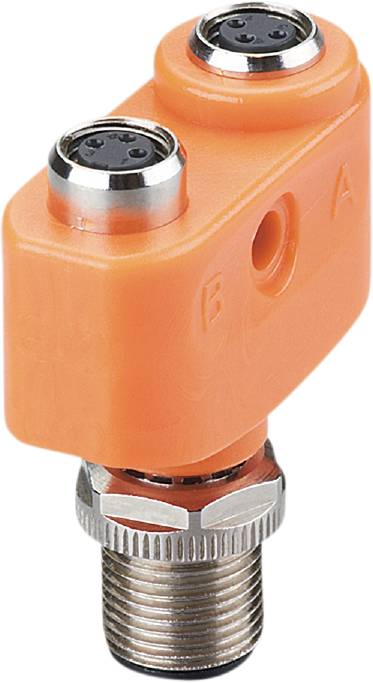

ifm Electronic EBC112 Splitter cable M12 Plug No. of pins (RJ): 4, 3 1 pc(s)
EAN:
Part number:
Item no:
Product type
Splitter cable
Connector type
Plug
Connection side A
M8
Connection side B
M12
No. of pins
4
3
Datasheet (PDF)
Highlights & Details
Ifm EBC112 Y-distributor
- For use in applications with many inputs and outputs in confined spaces
- Visual and haptic labeling of the ports
- Resistant to oils and coolants
- High protection class to meet the requirements of harsh industrial ambient
- Reliable protection of the O-ring against destruction by mechanical fixed stop
Technical specifications
- Ambient temperature-1 [°C]: -25...90
- Special feature: Silicon-free; gold-plated contacts
- Operating voltage [V]: < 50 AC / < 60 DC (cULus:30 AC / 42 DC)
- Weight [g]: 30,200
- PROTECTION CLASS IP 65; IP 67; IP 68; IP 69K
- Protection class III
- Silicone-free: Yes
- Plug connection: 1.Plug - Pin layout: 0001 - Plug connection: 1 x M12; Coding: A; lock: Brass, nickel-plated; contacts: Gold-plated; Tightening torque: 0.6...1.5 Nm / 3.socket - pin layout: 0013 - plug connection: 2 x M8; coding: A; locking: brass, nickel-plated; contacts: gold-plated; Tightening torque 0.3...0.5 Nm
- Current carrying capacity total [A]: 3
- Material swivel nut: Nickel-plated brass
- Type
EBC112
- Product type
Splitter cable
- Connector type
Plug
- Connection side A
M8
- Connection side B
M12
- No. of pins
4
3
- Nominal voltage
50 V AC
60 V DC
- Connection
M12 plug
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Coding
A
A
- Contact material
Gold plated
- Contact surface
Gold plated
- Features
Silicone-free
- Min. temperature
-25 °C
- Max. temperature
90 °C
- Seal type
O-ring
- Manufacturer part #
EBC112
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3315757 ifm Electronic EBC112 Splitter cable M12 Plug No. of pins (RJ): 4, 3 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3315757 ifm Electronic EBC112 Splitter cable M12 Plug No. of pins (RJ): 4, 3 1 pc(s)
Description
Ifm EBC112 Y-distributor
