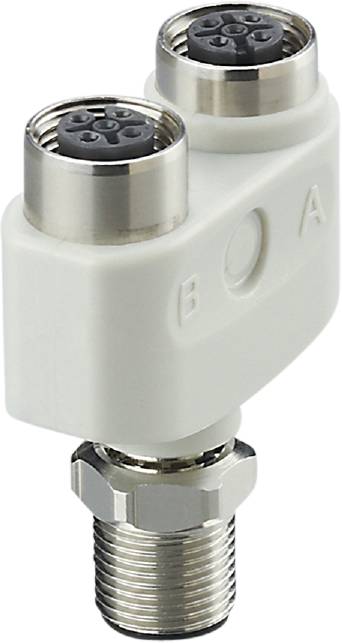

ifm Electronic EBF006 Splitter cable M12 1 pc(s)
EAN:
Part number:
Item no:
Product type
Splitter cable
Connection side A
M12
Connection side B
M12
Nominal voltage
250 V AC
300 V DC
Thread type connection side
M12
Datasheet (PDF)
Highlights & Details
Ifm EBF006 Y-distributor
- Resistant to high pressure cleaning with aggressive cleaning agents
- Halogen and silicon-free
- Visual and haptic labeling of the ports
- High protection class for the requirements of the food and drink industry
- Reliable protection of the O-ring against destruction by mechanical fixed stop
Technical specifications
- Ambient temperature-1 [°C]: -25...100
- Special feature: Silicon-free; gold-plated contacts
- Operating voltage [V]: < 250 AC / < 300 DC (cULus:30 AC / 42 DC)
- Weight [g]: 33,000
- Storage humidity [%]: 10...100
- Storage temperature [°C]: -25...55
- PROTECTION CLASS IP 65; IP 67; IP 68; IP 69K
- Protection class: II
- Silicone-free: Yes
- Plug connection: Plug - pin layout: Zero - connector: 1 x M12; grip body: PA, halogen-free; locking: 1.4404 (stainless steel / 316L); contacts: Gold-plated; tightening torque: 0.6...1.2 Nm / socket - pin layout: Zero - connector: 1.5 x M12; grip body: PA, halogen-free; lock: 1.4404 (stainless steel / 316L); contacts: Gold-plated; tightening torque: 0.6...2 Nm
- Current carrying capacity total [A]: 4
- Current rating per module / slot [A]: 4
- Material: Grip body PA, halogen-free
- Cap nut material: 1.4404 (stainless steel / 316L)
- Type
EBF006
- Product type
Splitter cable
- Connection side A
M12
- Connection side B
M12
- Nominal voltage
250 V AC
300 V DC
- Connection
Connector
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Contact surface
Gold plated
- Features
Silicone-free
- Min. temperature
-25 °C
- Max. temperature
100 °C
- Manufacturer part #
EBF006
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3316059 ifm Electronic EBF006 Splitter cable M12 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3316059 ifm Electronic EBF006 Splitter cable M12 1 pc(s)
Description
Ifm EBF006 Y-distributor
