ifm Electronic EBF009 Splitter cable M12 Plug No. of pins (RJ): 5, 5 1 pc(s)
EAN:
Part number:
Item no:
Product type
Splitter cable
Connector type
Plug
Connection side A
M12
Connection side B
M12
No. of pins
5
5
Datasheet (PDF)
Highlights & Details

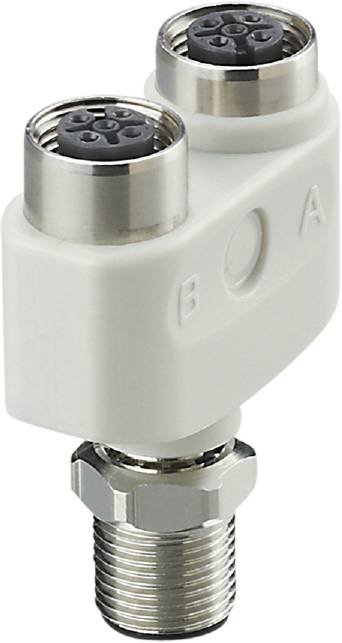

Ifm EBF009 Y-distributor
- Resistant to high pressure cleaning with aggressive cleaning agents
- Halogen and silicon-free
- Visual and haptic labeling of the ports
- High protection class for the requirements of the food and drink industry
- Reliable protection of the O-ring against destruction by mechanical fixed stop
Technical specifications
- Ambient temperature-1 [°C]: -25...100
- Application: Logical OR link
- Special feature: Silicon-free; gold-plated contacts
- Operating voltage [V]: < 60 AC/DC; (cULus:30 AC / 42 DC)
- Weight [g]: 33,900
- Storage humidity [%]: 10...100
- Storage temperature [°C]: -25...55
- PROTECTION CLASS IP 65; IP 67; IP 68; IP 69K
- Protection class: II
- Silicone-free: Yes
- Plug connection: Plug - Pin layout: 0063 - Plug connection: 1 x M12; Coding: A; Grip body: PA, halogen-free; Lock: 1.4404 (Stainless steel / 316L); Contacts: Gold-plated; Tightening torque: 2...1.4404 Nm / socket - Pin layout: 0.6 - Connector: 1.5 x M12; Coding: A; Grip body: PA, halogen-free; Lock: 1.2 (Stainless steel / 316L); Contacts: Gold-plated; Tightening torque: 0017...0.6 Nm
- Current carrying capacity total [A]: 4
- Current carrying capacity total (UL) [A]: 3
- Current rating per module / slot [A]: 4
- Material: Grip body PA, halogen-free
- Cap nut material: 1.4404 (stainless steel / 316L)
- Type
EBF009
- Product type
Splitter cable
- Connector type
Plug
- Connection side A
M12
- Connection side B
M12
- No. of pins
5
5
- Nominal voltage
60 V DC/AC
42 V DC
- Connection
M12 plug
- Thread type connection side
M12
- Coding
A
A
- Contact surface
Gold plated
- Features
Silicone-free
- Min. temperature
-25 °C
- Max. temperature
100 °C
- Manufacturer part #
EBF009
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3316062 ifm Electronic EBF009 Splitter cable M12 Plug No. of pins (RJ): 5, 5 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3316062 ifm Electronic EBF009 Splitter cable M12 Plug No. of pins (RJ): 5, 5 1 pc(s)
Description
Ifm EBF009 Y-distributor
