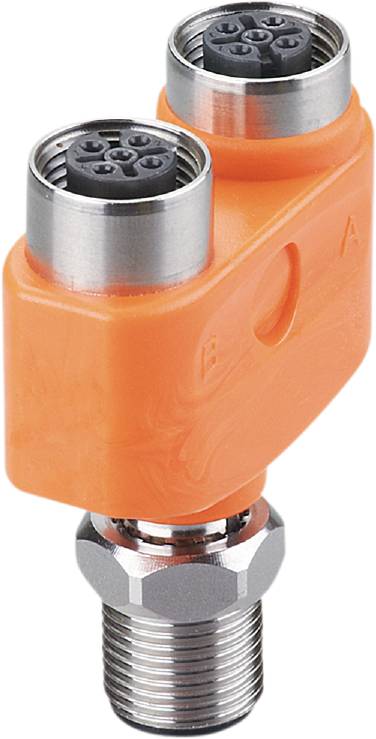

ifm Electronic EBT006 Splitter cable M12 No. of pins (RJ): 4, 5 1 pc(s)
EAN:
Part number:
Item no:
Product type
Splitter cable
Connection side A
M12
Connection side B
M12
No. of pins
4
5
Nominal voltage
250 V AC
300 V DC
Datasheet (PDF)
Highlights & Details
Ifm EBT006 Y-distributor
- Resistant to high pressure cleaning with aggressive cleaning agents
- For use in applications with many inputs and outputs in confined spaces
- Visual and haptic labeling of the ports
- High protection class for the requirements of the food and drink industry
- Reliable protection of the O-ring against destruction by mechanical fixed stop
Technical specifications
- Ambient temperature-1 [°C]: -25...100
- Special feature: Silicon-free; gold-plated contacts
- Operating voltage [V]: < 250 AC / < 300 DC (cULus:30 AC / 42 DC)
- Weight [g]: 34,600
- Storage humidity [%]: 10...100
- Storage temperature [°C]: -25...55
- PROTECTION CLASS IP 65; IP 67; IP 68; IP 69K
- Protection class: II
- Silicone-free: Yes
- Plug connection: 1.Plug - Pin layout: 0001 - Plug connection: 1 x M12; Coding: A; Lock: 1.4404 (Stainless steel / 316L); Contacts: Gold-plated; Tightening torque: 0017...1.5 Nm / 3.Socket - Pin layout: 0.6 - Connector: 2 x M12; Coding: A; Lock: 1.4404 (Stainless steel / 316L); Contacts: Gold-plated; Tightening torque: 0.6...1.5 Nm
- Current carrying capacity total [A]: 4
- Current rating per module / slot [A]: 4
- Cap nut material: 1.4404 (stainless steel / 316L)
- Type
EBT006
- Product type
Splitter cable
- Connection side A
M12
- Connection side B
M12
- No. of pins
4
5
- Nominal voltage
250 V AC
300 V DC
- Connection
Connector
- Thread type connection side
M12
- Coding
A
A
- Contact surface
Gold plated
- Features
Silicone-free
- Min. temperature
-25 °C
- Max. temperature
100 °C
- Seal type
Screw-on
- Manufacturer part #
EBT006
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3316006 ifm Electronic EBT006 Splitter cable M12 No. of pins (RJ): 4, 5 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3316006 ifm Electronic EBT006 Splitter cable M12 No. of pins (RJ): 4, 5 1 pc(s)
Description
Ifm EBT006 Y-distributor
