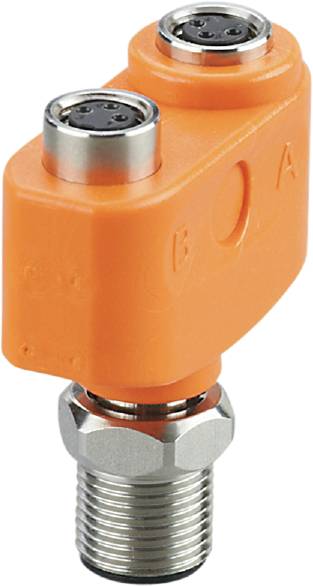

ifm Electronic EBT012 Splitter cable M12 No. of pins (RJ): 4, 3 1 pc(s)
EAN:
Part number:
Item no:
Product type
Splitter cable
Connection side A
M8
Connection side B
M12
No. of pins
4
3
Nominal voltage
50 V AC
60 V DC
Datasheet (PDF)
Highlights & Details
Ifm EBT012 Y-distributor
- Resistant to high pressure cleaning with aggressive cleaning agents
- For use in applications with many inputs and outputs in confined spaces
- Visual and haptic labeling of the ports
- High protection class for the requirements of the food and drink industry
- Reliable protection of the O-ring against destruction by mechanical fixed stop
Technical specifications
- Ambient temperature-1 [°C]: -25...80
- Special feature: Silicon-free; gold-plated contacts
- Operating voltage [V]: < 50 AC / < 60 DC (cULus:30 AC / 42 DC)
- Weight [g]: 28,900
- PROTECTION CLASS IP 65; IP 67; IP 68; IP 69K
- Protection class III
- Silicone-free: Yes
- Plug connection: 1.Plug - Pin layout: 0001 - Connector: 1 x M12; Coding: A; Lock: 1.4404 (stainless steel / 316L); Contacts: Gold-plated; tightening torque: 0.6...1.5 Nm; observe maximum value of the mating part! / 3.Socket - Pin layout: 0013 - Connector: 2 x M8; Coding: A; Lock: 1.4404 (Stainless steel / 316L); Contacts: Gold-plated; Tightening torque: 0.3...0.5 Nm
- Current carrying capacity total [A]: 3
- Cap nut material: 1.4404 (stainless steel / 316L)
- Type
EBT012
- Product type
Splitter cable
- Connection side A
M8
- Connection side B
M12
- No. of pins
4
3
- Nominal voltage
50 V AC
60 V DC
- Connection
M12 plug
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Coding
A
A
- Contact material
Gold plated
- Contact surface
Gold plated
- Features
Silicone-free
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Seal type
Screw-on
- Manufacturer part #
EBT012
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3315914 ifm Electronic EBT012 Splitter cable M12 No. of pins (RJ): 4, 3 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3315914 ifm Electronic EBT012 Splitter cable M12 No. of pins (RJ): 4, 3 1 pc(s)
Description
Ifm EBT012 Y-distributor
