Buy ifm Electronic Electronic fluid level gauge LMT100 LMT100 Operating voltage (range): 18 - 30 V DC 1 pc(s)

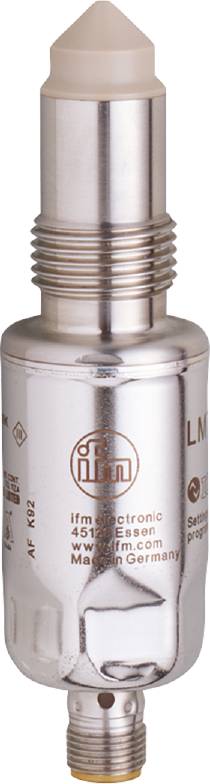

Image similar

Product type

Electronic fluid level gauge

Min. operating voltage

18 V DC

Max. operating voltage

30 V DC

Packaging type

Piece

Type

LMT100

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ifm LMT100 Electronic level sensor

For reliable level monitoring of tanks and containers
Hygienic design for the requirements of the food and beverage industry
Use in liquid and paste-type media as well as bulk materials
Media differentiation by parameterizing the switching outputs
Reliable fade-out of attachments or foam
Convenient communication and parameterization via IO-Link

Technical specifications

Response time [s]: < 0.5
Number of digital outputs: 2
Number of inputs and outputs: Number of digital outputs: 2
Display: Switch state: LED, yellow; operating state: LED, green
IO-Link Revision: 1.1
Level measuring principle: Capacitive
SDCI standard IEC 61131-9
Transmission type IO-Link: COM2 (38.4 kBaud)
Ambient temperature-1 [°C]: -40...85
Factory setting: Water-based media
Short-circuit protection version: Synchronised
Output function: NO/NC contact; (can be parameterized)
Output signal: Switching signal; IO-Link
Tank pressure [bar]: -1...40
Tank pressure [MPa]: -0.1...4
Required master port class: A
Special feature: Gold-plated contacts
Operating voltage [V]: 18... 30 DC
Continuous current carrying capacity of the switching output DC [mA]: 100
Electrical version: PNP/NPN
Total number of outputs: 2
Weight [g]: 169,500
Communication interface: IO-Link
Short-circuit protection: Yes
Storage temperature [°C]: -40...85
MAWP for applications according to CRN [bar]: 40
max. Voltage drop switch output DC [V]: 2.5
Media: Liquid media; pasty media; powdery media
Medium temperature - oil [°C]: -40...100
Medium temperature - Water [°C]: -40...100
Medium temperature short time - oil [°C]: -40...150; (1 h)
Medium temperature short time - water [°C]: -40...150; (1 h)
Min Process cycle time [ms]: 2.3
MTTF: 223
Not for use: See user manual, chapter 'Intended use'.
Profile: Smart sensor: Process data variable; device identification
Process connection: Threaded connection G 1/2 sealing cone
Analogue process data: 1
Binary process data: 2
PROTECTION CLASS IP 68; IP 69K
Protection class III
SIO mode: Yes
Probe length [mm]: 11
Plug connection: Pin layout: 0001 - plug connection: 1 x M12; code: A; contacts: Gold-plated
Current consumption: < 50
Overload-proof: Yes
Reverse polarity protection: Yes
Materials in contact with the Medium: PEEK; Surface texture: Ra < 0.8 / Rz 4
