Buy ifm Electronic EVC030 Cable connection M12 Plug, right angle, Socket, right angle 0.3 m No. of pins (RJ): 4, 5 1 pc(s)

There is a Conrad shop in your region. You can shop in your own language, have access to your local customer service and enjoy local transport for your purchase.

Go to local shop

Conrad
To search for the product, enter a catchphrase, an article number, an EAN or a part number
My account

Log in / Register
Shopping cart

Subscribe to the newsletter and receive a €5 voucher Subscribe to the newsletter and receive a €5 voucher
Procurement

Order & eProcurement

All order and procurement services
Services

All Services
Offers %

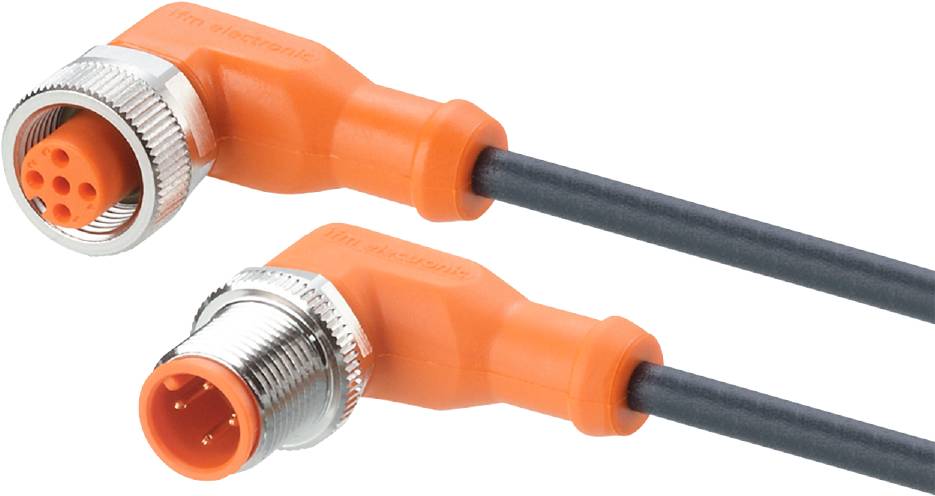

Two orange, L-shaped electrical connectors on black cables, used for electrical connections.

Image similar

Product type

Cable connection

Connector type

Plug, right angle

Socket, right angle

Connection side A

M12

Connection side B

M12

No. of pins

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ifm EVC030 connection cable

Resistant to oils and coolants
Durable, reliable sealing even with tool-free mounting
High protection class to meet the requirements of harsh industrial ambient
Vibration and shock proof thanks to the swivel nut and vibration proof
Reliable protection of the O-ring against destruction by mechanical fixed stop

Technical specifications

Dimensions [mm] 30.5 x 15.5 x 36.5
Drag-chain compatibility: Bending radius when used flexibly: Min. 10 x cable diameter; traverse speed: Max. 3.3 m/s at 5 m horizontal traverse length and max. Acceleration of 5 m/s²; bending cycles: > 5 MIO.; torsional load: ± 180 °/m.
Drag chain capability available: Yes
Ambient temperature-1 [°C]: -25...90
Special feature: Silicone-free; halogen-free; gold-plated contacts; suitable for drag chains
OPERATING VOLTAGE [V]: < 250 AC / < 300 DC
Weight [g]: 44,600
Cable 2 - Cable: 0.3 m, PUR, halogen-free, black, Ø 4.3 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm)
Storage humidity [%]: 10...100
Storage temperature [°C]: -25...55
PROTECTION CLASS IP 65; IP 67; IP 68; IP 69K
Protection class: II
Silicone-free: Yes
Plug connection: 1.Plug - Pin layout: 0001 - Plug connection: 1 x M12, angled; Coding: A; Grip body: TPU, orange; Locking: brass, nickel-plated; contacts: gold-plated; tightening torque: 0.6...1.5 Nm / 3.socket - pin layout: 0017 - plug connection: 1 x M12, angled; coding: A; grip body: TPU, orange; Lock: brass, nickel-plated; seal: FKM; contacts: gold-plated; tightening torque: 0.6...1.5 Nm
Current carrying capacity total [A]: 4
Ambient temperature, moving [°C]: -25...90
Material seal: FKM
Material grip body: TPU
Material swivel nut: Nickel-plated brass

Type: EVC030

Product type: Cable connection

Connector type: Plug, right angle
Socket, right angle

Connection side A: M12

Connection side B: M12

No. of pins: 4
5

Cable length: 0.3 m

Jacket material: PUR

Nominal voltage: 250 V AC
300 V DC

Connector cross-section (max.): 0.34 mm²

Outside Ø: 4.3 mm

Cross-section (sensor/actuator wiring): 0.34 mm²

Connection: M12 plug

Thread type connection side: M12

Thread type (wiring and installation): M12

Coding: A
A

Contact material: Gold plated

Contact surface: Gold plated

max. cross section: 0.34 mm²

: IP67/IP69K

Features: Halogen-free

Min. temperature: -25 °C

Max. temperature: 90 °C

Manufacturer part #: EVC030

Content: 1 pc(s)

Cable Ø: 4.3 mm

RoHS-compliant: Yes

UKCA: yes
