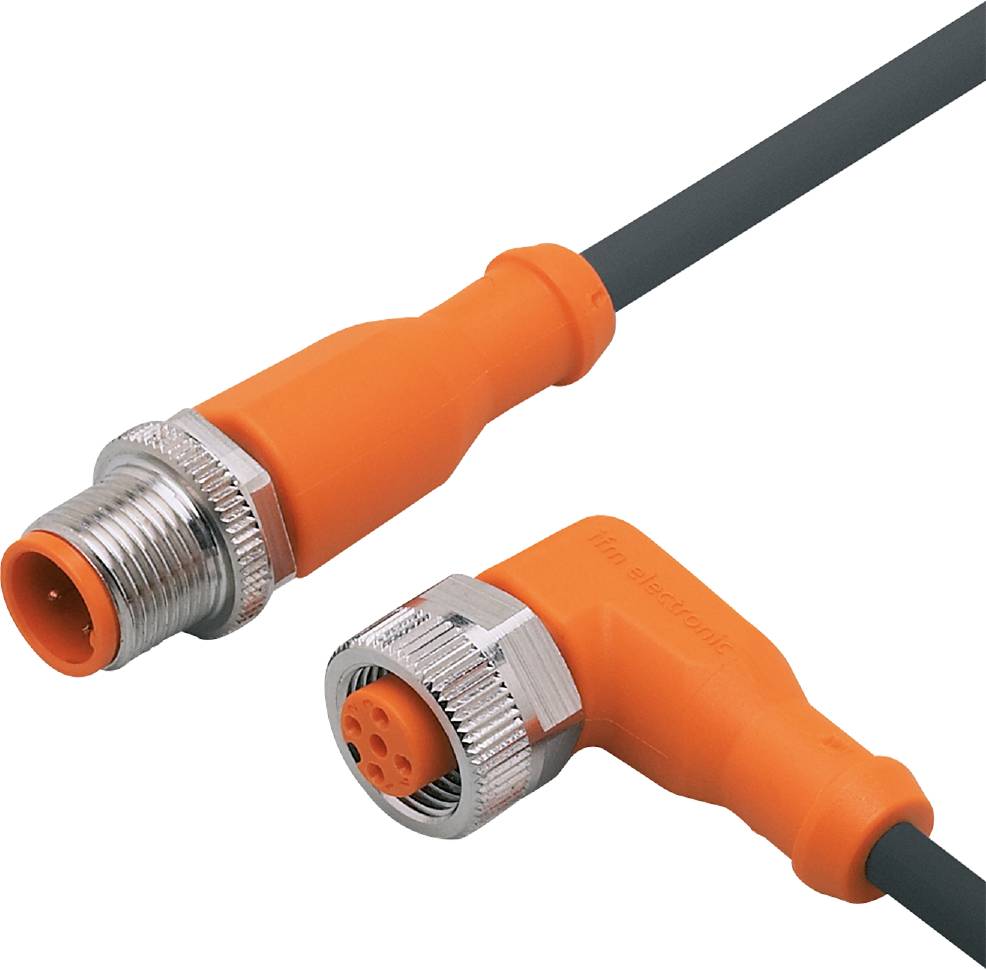

Black cable with two orange connectors and silver screw locks. The connectors are at right angles.

Image similar

Product type

Cable connection

Connector type

Plug, straight

Socket, right angle

Connection side A

M12

Connection side B

M12

No. of pins

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ifm EVC045 connection cable

Resistant to oils and coolants
Durable, reliable sealing even with tool-free mounting
High protection class to meet the requirements of harsh industrial ambient
Vibration and shock proof thanks to the swivel nut and vibration proof
Reliable protection of the O-ring against destruction by mechanical fixed stop

Technical specifications

Drag-chain compatibility: Bending radius when used flexibly: Min. 10 x cable diameter; traverse speed: Max. 3.3 m/s at 5 m horizontal traverse length and max. Acceleration of 5 m/s²; bending cycles: > 5 MIO.; torsional load: ± 180 °/m.
Drag chain capability available: Yes
Ambient temperature-1 [°C]: -25...90
Special feature: Silicone-free; halogen-free; gold-plated contacts; suitable for drag chains
OPERATING VOLTAGE [V]: < 250 AC / < 300 DC
Weight [g]: 43,800
Cable 2 - Cable: 0.3 m, PUR, halogen-free, black, Ø 4.3 mm; 3 x 0.34 mm² (42 x Ø 0.1 mm)
Storage humidity [%]: 10...100
Storage temperature [°C]: -25...55
PROTECTION CLASS IP 65; IP 67; IP 68; IP 69K
Protection class: II
Silicone-free: Yes
Plug connection: 1.Plug - Pin layout: 0061 - Plug connection: 1 x M12, straight; Coding: A; lock: Brass, nickel-plated; Contacts: gold-plated; tightening torque: 0.6...1.5 Nm / 3.socket - pin layout: 0017 - plug connection: 1 x M12, angled; coding: A; locking: brass, nickel-plated; Contacts: gold-plated; tightening torque: 0.6...1.5 Nm
Current carrying capacity total [A]: 4
Ambient temperature, moving [°C]: -25...90
Material swivel nut: Nickel-plated brass

Type: EVC045

Product type: Cable connection

Connector type: Plug, straight
Socket, right angle

Connection side A: M12

Connection side B: M12

No. of pins: 3
5

Cable length: 0.3 m

Jacket material: PUR

Nominal voltage: 250 V AC
300 V DC

Cross-section (sensor/actuator wiring): 0.34 mm²

Connection: M12 plug

Thread type connection side: M12

Thread type (wiring and installation): M12

Coding: A
A

Features: Oil-resistant

Min. temperature: -25 °C

Max. temperature: 90 °C

Manufacturer part #: EVC045

Content: 1 pc(s)

Cable Ø: 4.3 mm

RoHS-compliant: Yes

UKCA: yes
