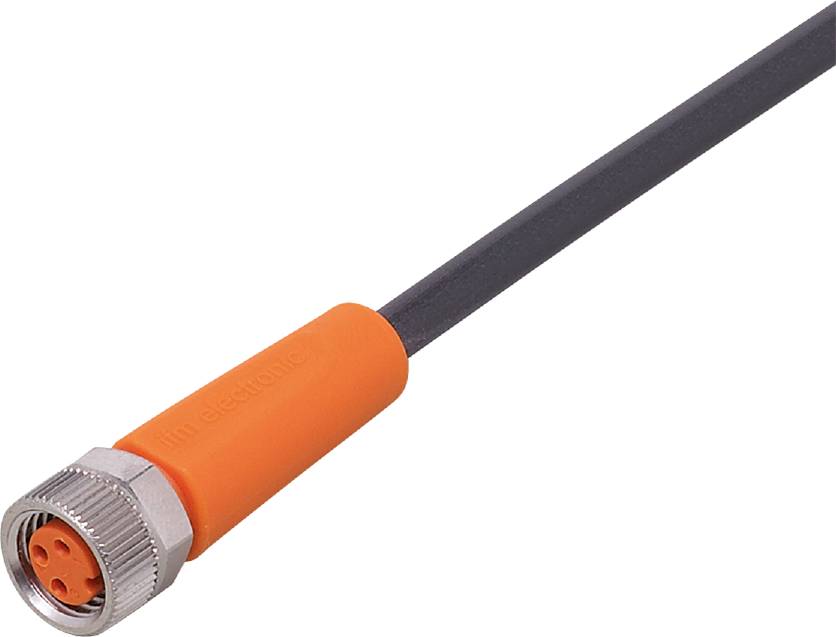

Image similar
Image similar
ifm Electronic EVC141 Cable M8 Socket, straight 2 m No. of pins (RJ): 3 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable
Connector type
Socket, straight
Connector standard
Sensor connector
Connection side A
M8
Connection side B
Cable, open end
Datasheet (PDF)
Technical specifications
- Type
EVC141
- Product type
Cable
- Connector type
Socket, straight
- Connector standard
Sensor connector
- Connection side A
M8
- Connection side B
Cable, open end
- No. of pins
3
- Cable length
2 m
- Jacket material
PUR
- Nominal voltage
50 V AC
60 V DC
- Cross-section (sensor/actuator wiring)
0.25 mm²
- Connection
M8 socket
- Thread type connection side
M8
- Thread type (wiring and installation)
M8
- Coding
A
- Contact material
Gold plated
- Contact surface
Gold plated
- max. cross section
0.25 mm²
IP67/IP69K
- Features
Halogen-free
- Min. temperature
-25 °C
- Max. temperature
90 °C
- Seal type
Screw-on
- Manufacturer part #
EVC141
- Content
1 pc(s)
- Cable Ø
3.7 mm
- Cable Ø (max.)
3.7 mm
- Cable Ø up to
3.7 mm
- Cable Ø range
3.7 - 3.7 mm
- RoHS-compliant
Yes
- UKCA
yes
