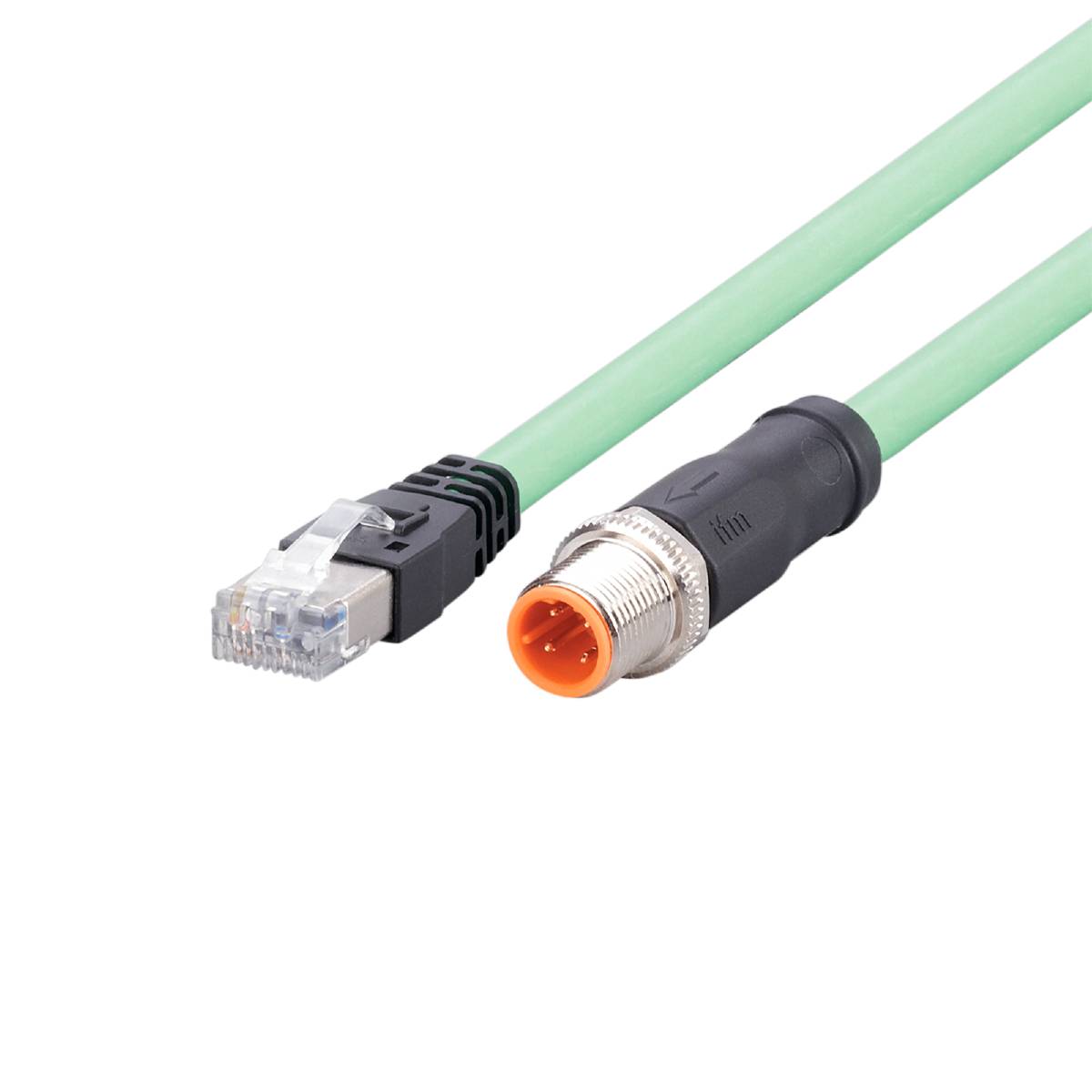

ifm Electronic EVC924 Cable connection Plug, straight 0.5 m No. of pins (RJ): 4 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable connection
Connector type
Plug, straight
Connection side A
M12
Connection side B
RJ45
No. of pins
4
Datasheet (PDF)
Highlights & Details
Ifm EVC924 connection cable
- High protection class to meet the requirements of harsh industrial ambient
- Cable sheath made of halogen-free and flame-resistant material
- With robust M12 connector Industrial Ethernet
- Large operating temperature range and high protection class
- Good electromagnetic compatibility thanks to shielded cable
Technical specifications
- Drag-chain compatibility: Bending radius when used flexibly: Min. 10 x cable diameter; traverse speed: Max. 3.3 m/s at 5 m horizontal traverse length and max. Acceleration of 5 m/s²; bending cycles: > 3 MIO.; torsional load: ± 180 °/m.
- Drag chain capability available: Yes
- Ambient temperature-1 [°C]: -25...90
- Application: Industrial Ethernet; CAT5/CAT5e; 100 Mbit/s; industrial applications / factory automation
- Design: Ethernet cable, D-coded
- Special feature: Silicone-free; halogen-free; gold-plated contacts; shielded cable; suitable for drag chains
- OPERATING VOLTAGE [V]: 30 AC / 60 DC
- Weight [g]: 69,600
- Cable 2 - Cable: 0.5 m, PUR, halogen-free, green, Ø 6.5 mm, shielded; PROFINET Type C; 4 x 0.34 mm² (7 x Ø 0.25 mm)
- Storage humidity [%]: 10...100
- Storage temperature [°C]: -25...55
- Protection class IP 65; IP 67; (M12 plug / RJ45 plug: IP 20)
- Protection class III
- Silicone-free: Yes
- Plug connection: 1.Plug - Pin layout: 0138 - Plug connection: 1 x M12, straight; Coding: D; Grip body: TPU, black; Locking: brass, nickel-plated; contacts: gold-plated; tightening torque: 0.6...1.2 Nm / 3.plug - pin layout: 0134 - plug connection: 1 x RJ45, straight; grip body: PC; contacts: gold-plated
- Current carrying capacity total [A]: 1.5
- Ambient temperature, moving [°C]: -25...90
- Material grip body: TPU / PC
- Material swivel nut: Nickel-plated brass
- Type
EVC924
- Product type
Cable connection
- Connector type
Plug, straight
- Connection side A
M12
- Connection side B
RJ45
- No. of pins
4
- Cable length
0.5 m
- Jacket material
PUR
- Nominal voltage
30 V AC
60 V DC
- Coding
D
- Min. temperature
-25 °C
- Max. temperature
90 °C
- Manufacturer part #
EVC924
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3322610 ifm Electronic EVC924 Cable connection Plug, straight 0.5 m No. of pins (RJ): 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3322610 ifm Electronic EVC924 Cable connection Plug, straight 0.5 m No. of pins (RJ): 4 1 pc(s)
Description
Ifm EVC924 connection cable
