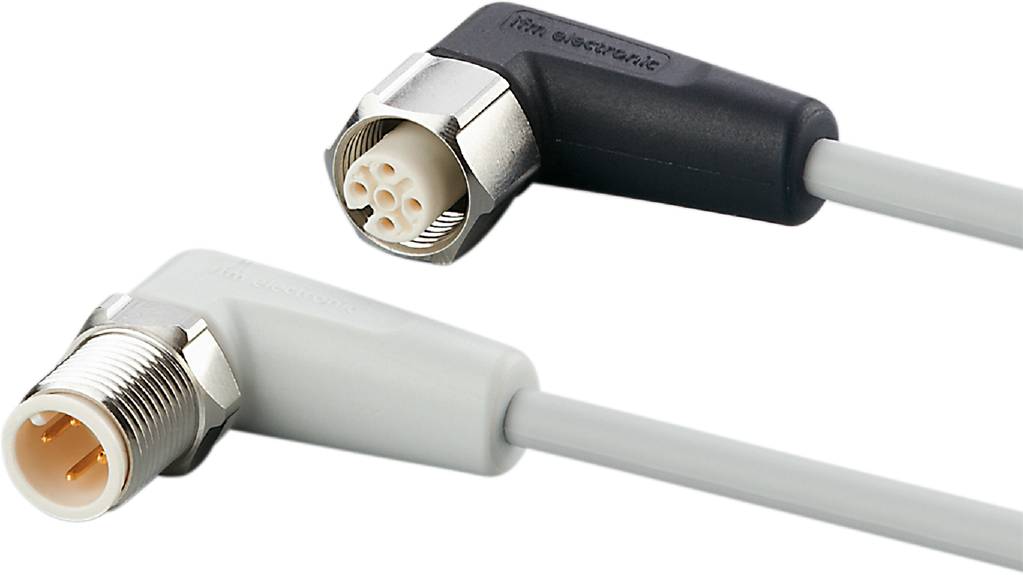

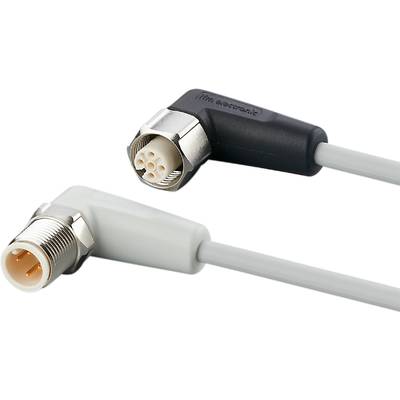

'Close-up of an angled connector and a straight cable with connecting elements. Suitable for electronic connections.'

Image similar

Product type

Cable connection

Connector type

Plug, right angle

Socket, right angle

Connection side A

M12

Connection side B

M12

No. of pins

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ifm EVF083 connection cable

For use in hygiene and wet areas in the food industry
Durable, reliable sealing even with tool-free mounting
Cable sheath made of halogen-free and flame-resistant material
Vibration and shock proof thanks to the swivel nut and vibration proof
LEDs are clearly visible even in strong light

Technical specifications

Dimensions [mm] 30.5 x 15.5 x 36.5
Display: Switch status: 2 x LED, yellow; operation: 1 x LED, green
Drag-chain compatibility: Bending radius when used flexibly: Min. 10 x cable diameter; traverse speed: Max. 3.3 m/s at 5 m horizontal traverse length and max. Acceleration of 5 m/s²; bending cycles: > 1 MIO.; torsional load: ± 180 °/m.
Drag chain capability available: Yes
Ambient temperature-1 [°C]: -25...100
Application: Hygiene and wet areas in the food industry
Special feature: Silicone-free; halogen-free; gold-plated contacts; suitable for drag chains
Operating voltage [V]: 10... 36 DC
Electrical version: PNP
Weight [g]: 39,500
Cable 2 - Cable: 0.3 m, MPPE, halogen-free, gray, Ø 4.9 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm)
PROTECTION CLASS IP 65; IP 67; IP 68; IP 69K
Protection class: II
Silicone-free: Yes
Plug connection: 1.Plug - Pin layout: 0001 - Plug connection: 1 x M12, angled; Coding: A; Grip body: PP, gray; Lock: 1.4404 (stainless steel / 316L); contacts: gold-plated; tightening torque: 0.6...1.2 Nm / 3.socket - pin layout: 0017 - plug connection: 1 x M12, angled; coding: A; grip body: PP, black transparent; Lock: 1.4404 (stainless steel / 316L); Seal: EPDM; contacts: gold-plated; tightening torque: 0.6...1.5 Nm
Current carrying capacity total [A]: 4
Ambient temperature, moving [°C]: 0...100
Material seal: EPDM
Material Gripp: PP
Cap nut material: 1.4404 (stainless steel / 316L)

Type: EVF083

Product type: Cable connection

Connector type: Plug, right angle
Socket, right angle

Connection side A: M12

Connection side B: M12

No. of pins: 4
5

Cable length: 0.3 m

Jacket material: MPPE

Nominal voltage: 36 V DC

Connector cross-section (max.): 0.34 mm²

Outside Ø: 4.9 mm

Cross-section (sensor/actuator wiring): 0.34 mm²

Connection: M12 plug

Thread type connection side: M12

Thread type (wiring and installation): M12

Coding: A
A

Contact material: Gold plated

Contact surface: Gold plated

max. cross section: 0.34 mm²

Features: Silicone-free

Min. temperature: -25 °C

Max. temperature: 100 °C

Manufacturer part #: EVF083

Content: 1 pc(s)

Cable Ø: 4.9 mm

Cable Ø (max.): 4.9 mm

Cable Ø range: 4.9 mm (max)

UKCA: not relevant
