Buy ifm Electronic EVF480 Cable Socket, straight 2 m No. of pins (RJ): 5 1 pc(s)

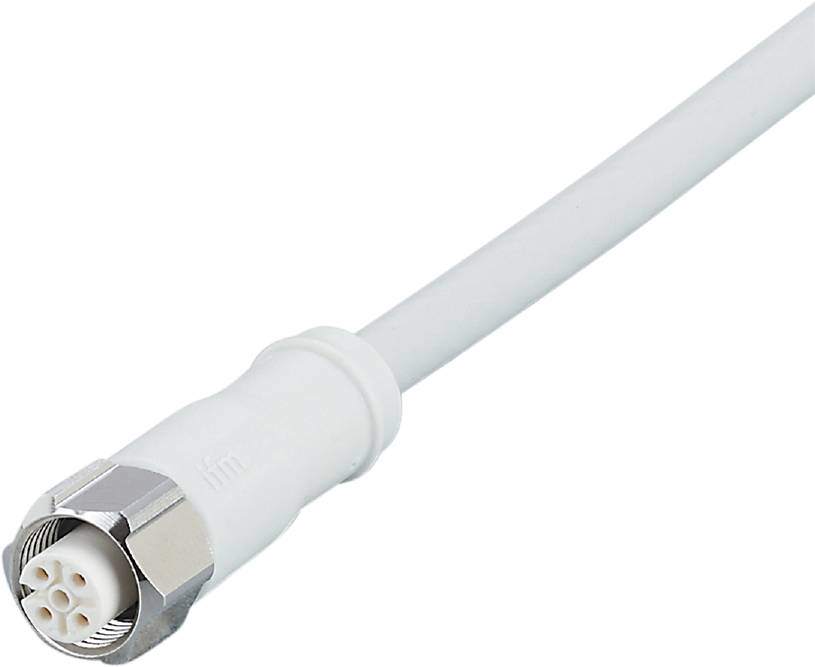

Image similar

Product type

Cable

Connector type

Socket, straight

Connection side A

M12

Connection side B

Cable, open end

No. of pins

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

For use in hygiene and wet areas in the food industry
Durable, reliable sealing even with tool-free mounting
Cable sheath made of halogen-free and flame-resistant material
Vibration and shock proof thanks to the swivel nut and vibration proof
Large cable cross-section for reducing the voltage drop and the transmission of higher currents

Dimensions [mm] 15.5 x 15.5 x 47
Drag-chain compatibility: Bending radius when used flexibly: Min. 10 x cable diameter; traverse speed: Max. 3.3 m/s at 5 m horizontal traverse length and max. Acceleration of 5 m/s²; bending cycles: > 1 MIO.; torsional load: ± 180 °/m.
Drag chain capability available: Yes
Ambient temperature-1 [°C]: -25...100
Application: Hygiene and wet areas in the food industry
Special feature: Silicone-free; halogen-free; gold-plated contacts; suitable for drag chains
OPERATING VOLTAGE [V]: < 250 AC / < 300 DC
Weight [g]: 149,500
Cable: Cable: 2 m, MPPE, halogen-free, gray, Ø 6.2 mm; 4 x 1.00 mm² (32 x Ø 0.2 mm)
Storage humidity [%]: 10...100
Storage temperature [°C]: -25...55
PROTECTION CLASS IP 65; IP 67; IP 68; IP 69K
Protection class: II
Silicone-free: Yes
Plug connection: Socket - pin layout: 0017 - plug connection: 1 x M12, straight; coding: A; grip body: PP; locking: 1.4404 (stainless steel / 316L); contacts: Gold-plated; tightening torque: 0.6...1.5 Nm
Current carrying capacity total [A]: 4
Ambient temperature, moving [°C]: 0...100
Material Gripp: PP
Cap nut material: 1.4404 (stainless steel / 316L)
