Buy ifm Electronic EVF542 Cable connection Plug, right angle 0.25 m No. of pins (RJ): 4 1 pc(s)

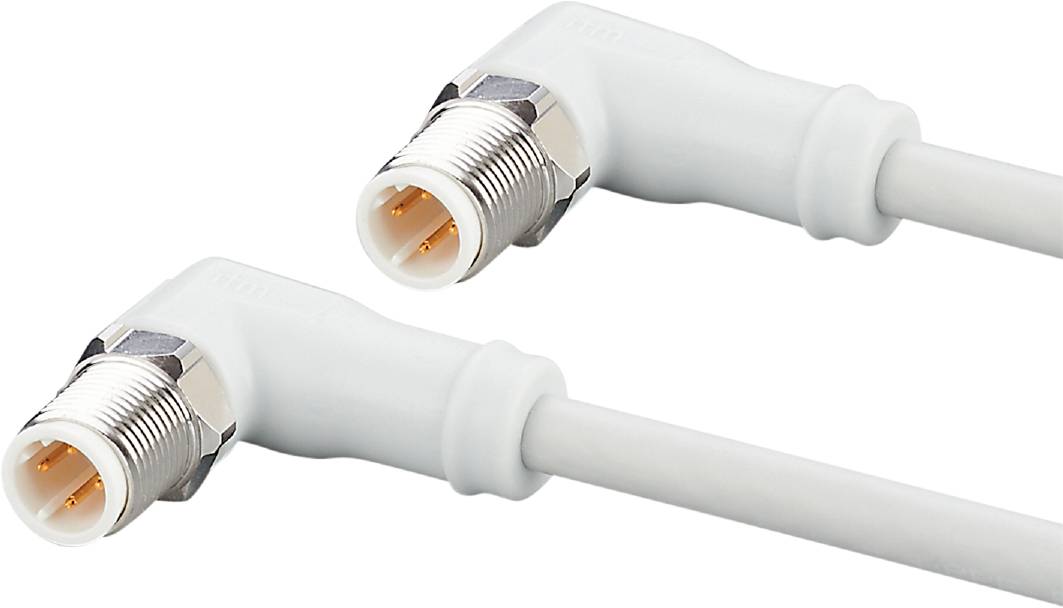

Image similar

Product type

Cable connection

Connector type

Plug, right angle

Connection side A

M12

Connection side B

Cable, open end

No. of pins

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Dimensions [mm] 35.5 x 15.5 x 38
Drag-chain compatibility: Bending radius when used flexibly: Min. 15 x cable diameter; traverse speed: Max. 3.3 m/s at 5 m horizontal traverse length and max. Acceleration of 5 m/s²; bending cycles: > 1 MIO.; torsional load: ± 180 °/m.
Drag chain capability available: Yes
Ambient temperature-1 [°C]: -25...100
Application: Industrial Ethernet; CAT5/CAT5e; 100 Mbit/s; Hygiene and wet areas in the food industry
Design: Ethernet cable, D-coded
Special feature: Silicone-free; halogen-free; gold-plated contacts; shielded cable; suitable for drag chains
OPERATING VOLTAGE [V]: 30 AC / 60 DC
Weight [g]: 52,000
Cable: Cable: 0.25 m, MPPE, halogen-free, gray, Ø 6.5 mm, shielded; PROFINET Type C; 4 x 0.34 mm² (7 x Ø 0.25 mm)
PROTECTION CLASS IP 65; IP 67; IP 68; IP 69K
Protection class III
Silicone-free: Yes
Plug connection: Plug - Pin layout: 0138 - Plug connection: 2 x M12, angled; Coding: D; Grip body: PP; Lock: 1.4404 (Stainless steel / 316L); Contacts: Gold-plated; Tightening torque: 0.6...1.2 Nm; Shielded connection cable: Shield applied
Current carrying capacity total [A]: 4
Ambient temperature, moving [°C]: 0...80
Material Gripp: PP
Cap nut material: 1.4404 (stainless steel / 316L)
