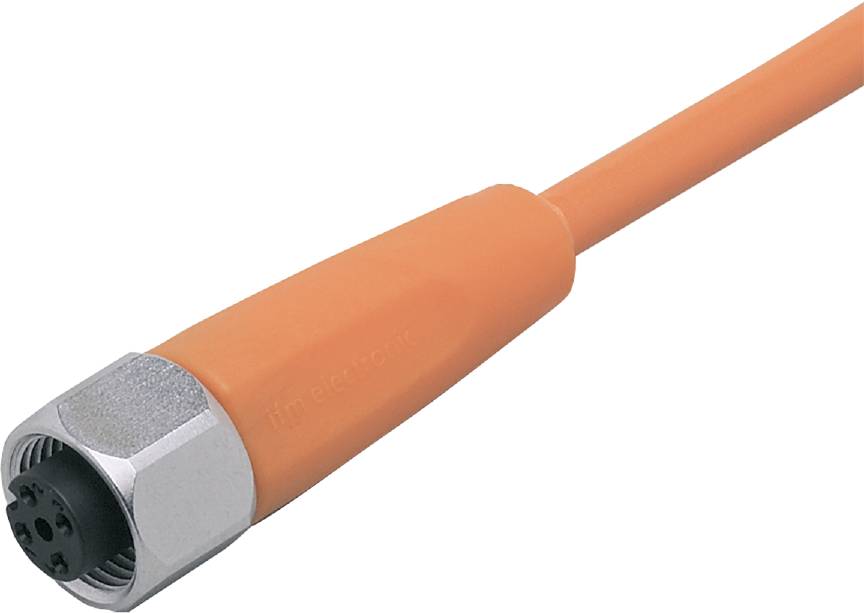

ifm Electronic EVT381 Cable M12 Socket, straight 2 m No. of pins (RJ): 5 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable
Connector type
Socket, straight
Connector standard
Sensor connector
Connection side A
M12
Connection side B
Cable, open end
Datasheet (PDF)
Technical specifications
- Type
EVT381
- Product type
Cable
- Connector type
Socket, straight
- Connector standard
Sensor connector
- Connection side A
M12
- Connection side B
Cable, open end
- No. of pins
5
- Cable length
2 m
- Jacket material
PVC
- Nominal voltage
50 V AC
60 V DC
- Connector cross-section (max.)
0.34 mm²
- Outside Ø
5.2 mm
- Cross-section (sensor/actuator wiring)
0.34 mm²
- Connection
M12 socket
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Coding
A
- Contact surface
Gold plated contacts
- max. cross section
0.34 mm²
- Features
Silicone-free
- Min. temperature
-25 °C
- Max. temperature
100 °C
- Seal type
Screw-on
- Manufacturer part #
EVT381
- Content
1 pc(s)
- Cable Ø
5.2 mm
- Cable Ø (max.)
5.2 mm
- Cable Ø range
5.2 mm (max)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3315691 ifm Electronic EVT381 Cable M12 Socket, straight 2 m No. of pins (RJ): 5 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3315691 ifm Electronic EVT381 Cable M12 Socket, straight 2 m No. of pins (RJ): 5 1 pc(s)
