ifm Electronic Fibre optics E20606 E20606 1 pc(s)
EAN:
Part number:
Item no:
Product type
Fibre optics
Type
E20606
Cable length
2000 mm
Size
M4
Enclosure material
Aluminium
Datasheet (PDF)
Highlights & Details

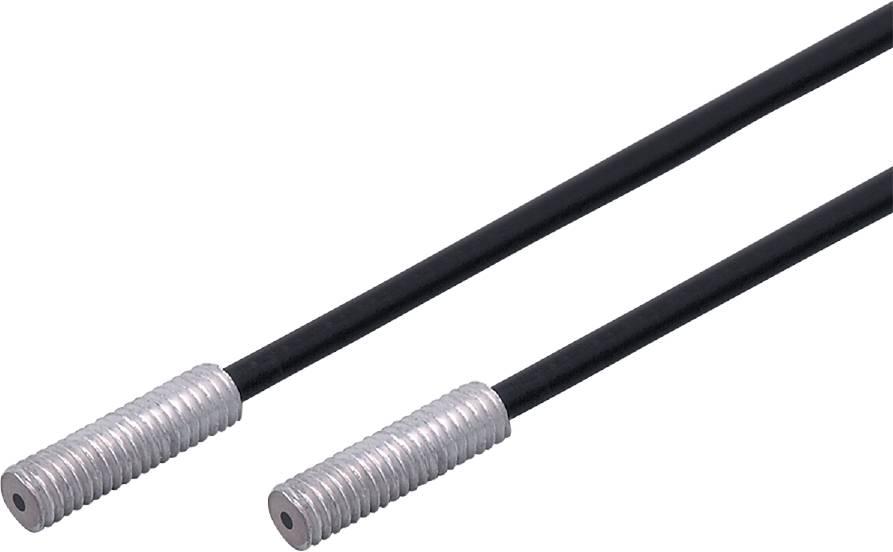

Ifm E20606 One-way Light Barrier
- For installation in awkward spaces
- Operating as one way light barrier
- High volume output
- Length self assembled
- Small bending radius
Our service for you
Technical specifications
- Functional principle opto: One-way light barrier
- Ambient temperature-1 [°C]: -40...70
- Application: For use in industrial applications
- Probe head type: Straight
- FOA-R02 fiber arrangement
- Total length [mm]: 2000
- Weight [g]: 47,500
- Core diameter [mm]: 1
- Light guide material: Aluminium
- Fibre optic cable jacket material PE
- Optical fiber material PMMA
- Minimum bend radius [mm]: 30
- Fibre optic range - OB50 [mm]: 200
- Fibre optic range - OBF [mm]: 450
- Fibre optic range - OCF [mm]: 2800
- Fibre optic range - OO50 [mm]: 800
- Range with fiber optic amplifier type: OB50; OBF; OCF; OO50
- Probe head thread M4
- Probe length [mm]: 15
- Product type
Fibre optics
- Type
E20606
- Cable length
2000 mm
- Size
M4
- Enclosure material
Aluminium
2800 mm
- Features
Bend-proof cable
- Min. temperature
-40 °C
- Max. temperature
70 °C
- Length
15 mm
- (Ø)
1 mm
- Dim
(Ø x L) 1 mm x 15 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3317894 ifm Electronic Fibre optics E20606 E20606 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3317894 ifm Electronic Fibre optics E20606 E20606 1 pc(s)
Description
Ifm E20606 One-way Light Barrier
This text is machine translated.
This text is machine translated.
Hints
For more information on this E20606, please refer to its datasheet under 'downloadable documents'
