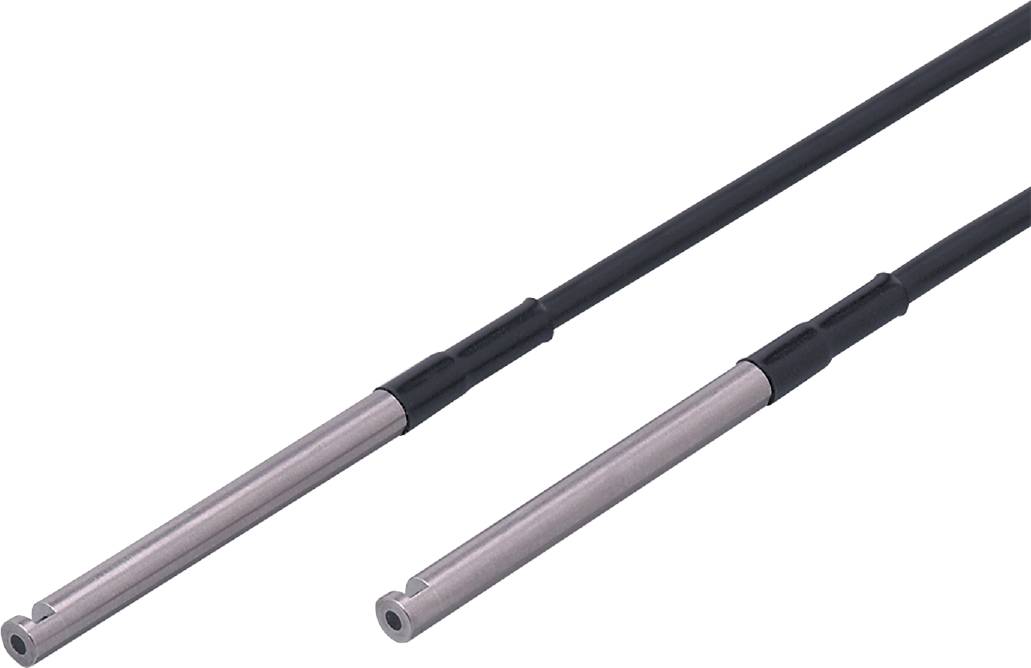

Image similar
ifm Electronic Fibre optics E20714 E20714 1 pc(s)
EAN:
Part number:
Item no:
Product type
Fibre optics
Type
E20714
Size
3 mm
Enclosure material
Stainless steel
Material properties
rust-proof
Datasheet (PDF)
Highlights & Details
Ifm E20714 One-way Light Barrier
- For installation in awkward spaces
- Operating as one way light barrier
- With 90° deflection of the light beam for use in confined spaces
- Length self assembled
- Small bending radius
Technical specifications
- Functional principle opto: One-way light barrier
- Ambient temperature-1 [°C]: -40...70
- Application: For use in industrial applications
- Design: 90° rotation of the light beam
- Probe type: Angled
- FOA-R02 fiber arrangement
- Total length [mm]: 2000
- Weight [g]: 58,500
- Fibre optic material 1.4305 (stainless steel / 303)
- Fibre optic cable jacket material PE
- Optical fiber material PMMA
- Minimum bend radius [mm]: 25
- Fibre optic range - OB50 [mm]: 140
- Fibre optic range - OBF [mm]: 230
- Fibre optic range - OCF [mm]: 1720
- Fibre optic range - OO50 [mm]: 400
- Range with fiber optic amplifier type: OB50; OBF; OCF; OO50
- Probe diameter [mm]: 3
- Product type
Fibre optics
- Type
E20714
- Size
3 mm
- Enclosure material
Stainless steel
- Material properties
rust-proof
- Light emission
90 degree angled
1720 mm
- Min. temperature
-40 °C
- Max. temperature
70 °C
- Length
2000 mm
- (Ø)
3 mm
- Dim
(Ø x L) 3 mm x 2000 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3319598 ifm Electronic Fibre optics E20714 E20714 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3319598 ifm Electronic Fibre optics E20714 E20714 1 pc(s)
Description
Ifm E20714 One-way Light Barrier
This text is machine translated.
This text is machine translated.
Hints
For more information on this E20714, please refer to its datasheet under 'downloadable documents'
