Image similar
ifm Electronic Fibre optics E20715 E20715 1 pc(s)
EAN:
Part number:
Item no:
Product type
Fibre optics
Type
E20715
Cable length
2000 mm
Enclosure material
Stainless steel
Material properties
rust-proof
Datasheet (PDF)
Highlights & Details

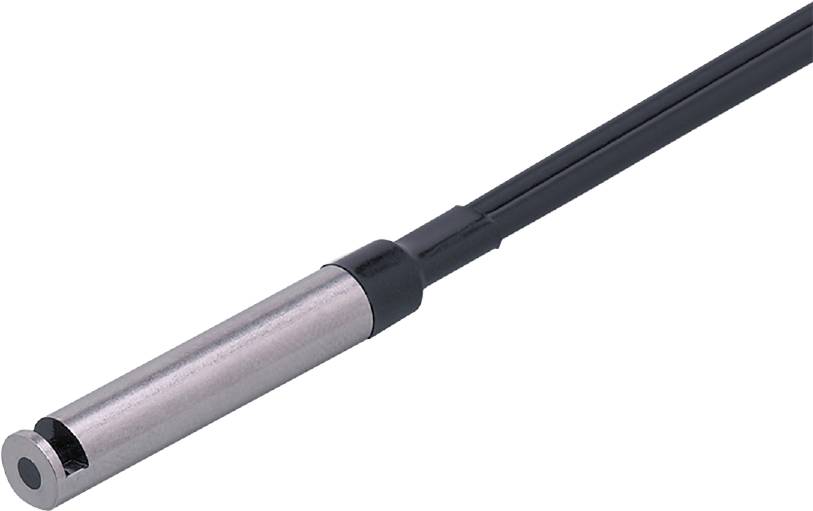

Ifm E20715 reflective light sensor
- For installation in awkward spaces
- Operates as light sensor
- With 90° deflection of the light beam for use in confined spaces
- Length self assembled
- Small bending radius
Technical specifications
- Functional principle opto: Reflection light sensor
- Ambient temperature-1 [°C]: -40...70
- Application: For use in industrial applications
- Probe type: Angled
- FOA-R03 fiber arrangement
- Total length [mm]: 2000
- Weight [g]: 52,000
- Fibre optic material 1.4305 (stainless steel / 303)
- Fibre optic cable jacket material PE
- Optical fiber material PMMA
- Minimum bend radius [mm]: 25
- Probe diameter [mm]: 6
- Feeler gauge for fiber optics – OB50 [mm]: 40
- Feeler gauges, fiber optics – OBF [mm]: 60
- Feeler gauge for fiber optics – OCF [mm]: 420
- Feeler gauge for fiber optics – OO50 [mm]: 150
- Scan width with fiber optic amplifier type: OB50; OBF; OCF; OO50
- Product type
Fibre optics
- Type
E20715
- Cable length
2000 mm
- Enclosure material
Stainless steel
- Material properties
rust-proof
- Light emission
90 degree angled
420 mm
- Min. temperature
-40 °C
- Max. temperature
70 °C
- (Ø)
6 mm
- Dim
(Ø) 6 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3319450 ifm Electronic Fibre optics E20715 E20715 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3319450 ifm Electronic Fibre optics E20715 E20715 1 pc(s)
Description
Ifm E20715 reflective light sensor
This text is machine translated.
This text is machine translated.
Hints
For more information on this E20715, please refer to its datasheet under 'downloadable documents'
