ifm Electronic Fibre optics E20756 E20756 1 pc(s)
EAN:
Part number:
Item no:
Product type
Fibre optics
Type
E20756
Cable length
2000 mm
Enclosure material
Aluminium
Max. range
20 mm
Datasheet (PDF)
Highlights & Details

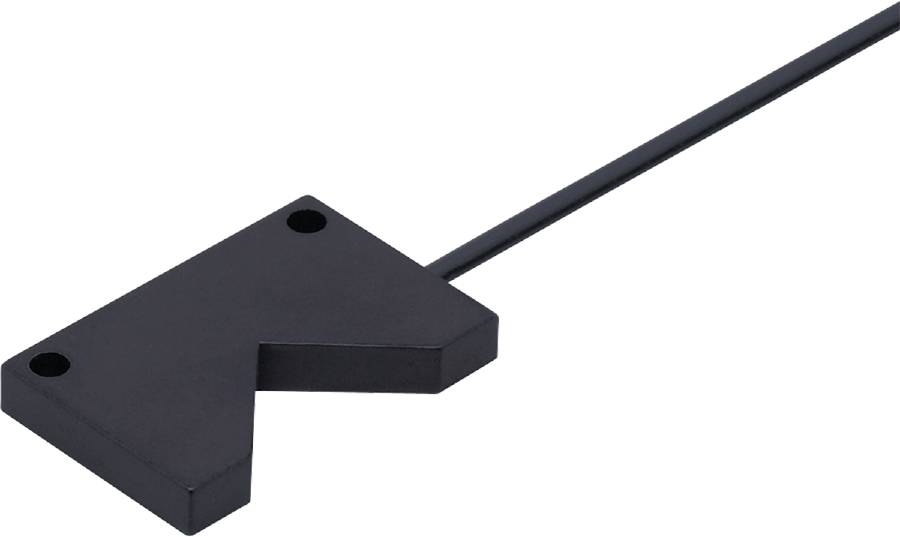

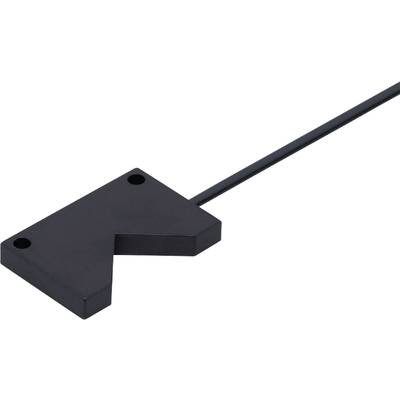

Ifm E20756 reflective light sensor
- For installation in awkward spaces
- Operates as light sensor
- For use in the near area
- Reliable background suppression
- Very small bending radius
Technical specifications
- Dimensions Probe [mm] 5 x 35 x 23
- Functional principle opto: Reflection light sensor
- Ambient temperature-1 [°C]: -40...70
- Application: Small bending radius
- Special feature: Background suppression
- FOA-R02 fiber arrangement
- Total length [mm]: 2000
- Weight [g]: 54,000
- Background suppression available: Yes
- Core diameter [mm]: 2 x 1
- Light guide material: Aluminium
- Fibre optic cable jacket material PE
- Optical fiber material PMMA
- Minimum bend radius [mm]: 10
- Probe width [mm]: 35
- Probe height [mm]: 5
- Probe length [mm]: 23
- Feeler gauge for fiber optics – OB50 [mm]: 6
- Feeler gauges, fiber optics – OBF [mm]: 10
- Feeler gauge for fiber optics – OCF [mm]: 20
- Scan width using fiber optic amplifier type: OB50; OBF; OCF
- Product type
Fibre optics
- Type
E20756
- Cable length
2000 mm
- Enclosure material
Aluminium
20 mm
- Features
Incl. background suppression
- Min. temperature
-40 °C
- Max. temperature
70 °C
- Length
23 mm
- Width
35 mm
- Height
5 mm
- Dim
(L x W x H) 23 x 35 x 5 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3319030 ifm Electronic Fibre optics E20756 E20756 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3319030 ifm Electronic Fibre optics E20756 E20756 1 pc(s)
Description
Ifm E20756 reflective light sensor
This text is machine translated.
This text is machine translated.
Hints
For more information on this E20756, please refer to its datasheet under 'downloadable documents'
