ifm Electronic Fibre optics E21102 E21102 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Fibre optics
Connector
Cable
Type
E21102
Cable length
2000 mm
Datasheet (PDF)
Highlights & Details

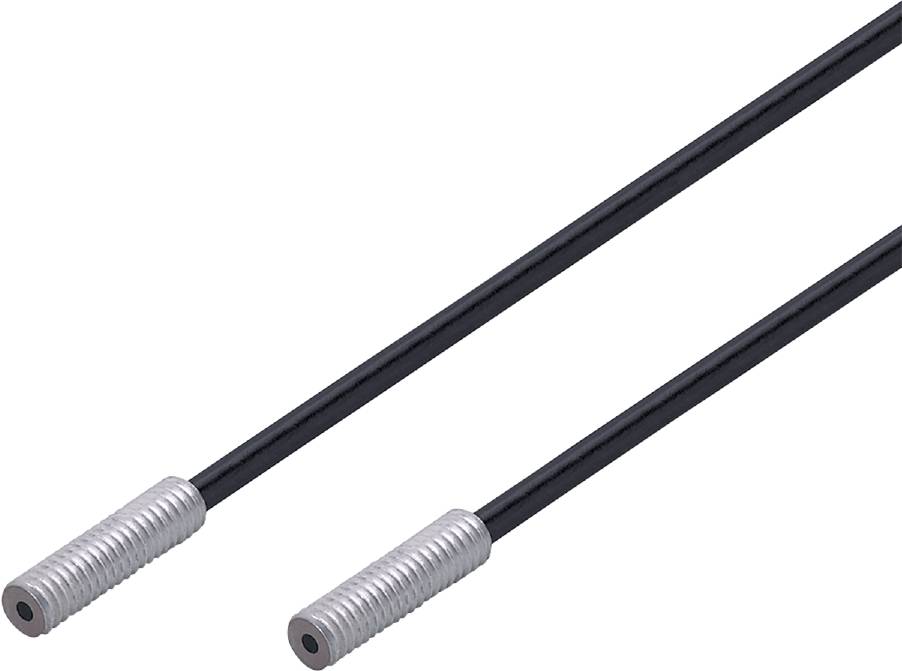

Ifm E21102 One-way Light Barrier
- For installation in awkward spaces
- Operating as one way light barrier
- High volume output
- Length self assembled
- Highly flexible design for extremely small bending radii
Our service for you
Technical specifications
- Functional principle opto: One-way light barrier
- Ambient temperature-1 [°C]: -40...60
- Application: Small bending radius
- Probe head type: Straight
- Outer diameter [mm]: 2.2
- FOA-R02 fiber arrangement
- Fibre diameter [mm]: 613 x 0.06
- Total length [mm]: 2000
- Weight [g]: 47,500
- Core diameter [mm]: 1.2
- Light guide material: Aluminium
- Fibre optic cable jacket material PE
- Optical fiber material PMMA
- Minimum bend radius [mm]: 3
- Fibre optic range - OB50 [mm]: 250
- Fibre optic range - OBF [mm]: 350
- Fibre optic range - OCF [mm]: 2730
- Fibre optic range - OO50 [mm]: 750
- Range with fiber optic amplifier type: OB50; OBF; OCF; OO50
- Probe head thread M4
- Probe length [mm]: 15
- Packaging type
Piece
- Product type
Fibre optics
- Type
E21102
- Connector
Cable
- Cable length
2000 mm
- Size
M4
- Enclosure material
Aluminium
2730 mm
- Features
Bend-proof cable
- Min. temperature
-40 °C
- Max. temperature
60 °C
- (Ø)
2.2 mm
- Dim
(Ø) 2.2 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3319665 ifm Electronic Fibre optics E21102 E21102 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3319665 ifm Electronic Fibre optics E21102 E21102 1 pc(s)
Description
Ifm E21102 One-way Light Barrier
This text is machine translated.
This text is machine translated.
Hints
For more information on this E21102, please refer to its datasheet under 'downloadable documents'
