ifm Electronic Fibre optics E21103 E21103 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Fibre optics
Type
E21103
Cable length
2000 mm
Enclosure material
Aluminium
Datasheet (PDF)
Highlights & Details

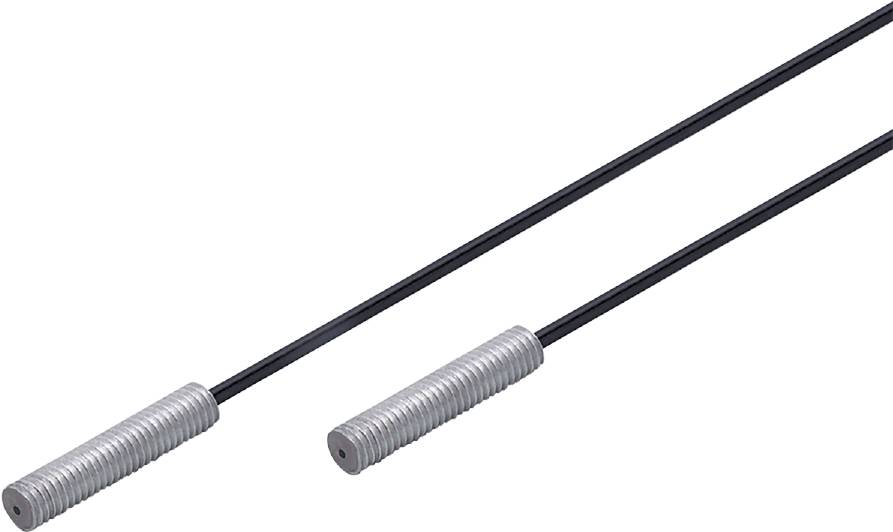

Ifm E21103 one-way light barrier
- For installation in awkward spaces
- Operating as one way light barrier
- High volume output
- Length self assembled
- Highly flexible design for extremely small bending radii
Our service for you
Technical specifications
- Functional principle opto: One-way light barrier
- Ambient temperature-1 [°C]: -40...60
- Application: Small bending radius
- Probe head type: Straight
- Outer diameter [mm]: 1
- FOA-R02 fiber arrangement
- Fibre diameter [mm]: 217 x 0.06
- Total length [mm]: 2000
- Weight [g]: 33,000
- Core diameter [mm]: 0.5
- Light guide material: Aluminium
- Fibre optic cable jacket material PE
- Optical fiber material PMMA
- Minimum bend radius [mm]: 3
- Fibre optic range - OB50 [mm]: 50
- Fibre optic range - OBF [mm]: 56
- Fibre optic range - OCF [mm]: 560
- Fibre optic range - OO50 [mm]: 120
- Range with fiber optic amplifier type: OB50; OBF; OCF; OO50
- Probe thread M3
- Packaging type
Piece
- Product type
Fibre optics
- Type
E21103
- Cable length
2000 mm
- Enclosure material
Aluminium
- Light emission
axial
560 mm
- Min. temperature
-40 °C
- Max. temperature
60 °C
- Length
2000 mm
- (Ø)
1 mm
- Dim
(Ø x L) 1 mm x 2000 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3319148 ifm Electronic Fibre optics E21103 E21103 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3319148 ifm Electronic Fibre optics E21103 E21103 1 pc(s)
Description
Ifm E21103 one-way light barrier
This text is machine translated.
This text is machine translated.
Hints
For more information on this E21103, please refer to its datasheet under 'downloadable documents'
