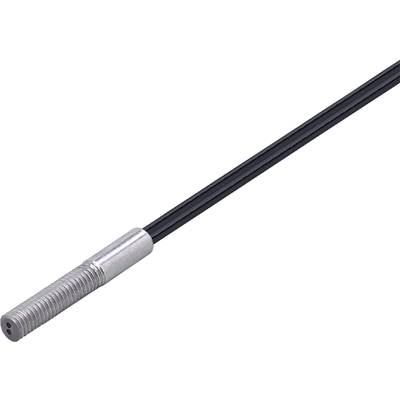

Image similar

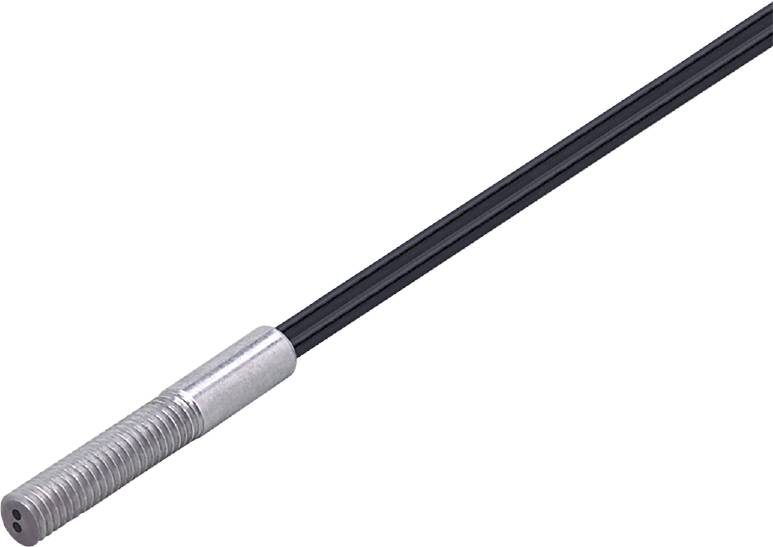

Image similar
ifm Electronic Fibre optics E21107 E21107 1 pc(s)
EAN:
Part number:
Item no:
Product type
Fibre optics
Type
E21107
Cable length
2000 mm
Enclosure material
Aluminium
Max. range
30 mm
Datasheet (PDF)
Highlights & Details
Ifm E21107 reflective light sensor
- For installation in awkward spaces
- Operates as light sensor
- For use in the near area
- Length self assembled
- Highly flexible design for extremely small bending radii
Our service for you
Technical specifications
- Functional principle opto: Reflection light sensor
- Ambient temperature-1 [°C]: -40...60
- Application: Small bending radius
- Probe head type: Straight
- Outer diameter [mm]: 1
- FOA-R03 fiber arrangement
- Fibre diameter [mm]: 2x 217 x 0.06
- Total length [mm]: 2000
- Weight [g]: 32,500
- Core diameter [mm]: 0.5
- Light guide material: Aluminium
- Fibre optic cable jacket material PE
- Optical fiber material PMMA
- Minimum bend radius [mm]: 3
- Probe thread M3
- Probe length [mm]: 20
- Feeler gauge for fiber optics – OB50 [mm]: 10
- Feeler gauges, fiber optics – OBF [mm]: 10
- Feeler gauge for fiber optics – OO50 [mm]: 30
- Scan width with fiber optic amplifier type: OB50; OBF; OO50
- Product type
Fibre optics
- Type
E21107
- Cable length
2000 mm
- Enclosure material
Aluminium
30 mm
- Features
Bend-proof cable
- Min. temperature
-40 °C
- Max. temperature
60 °C
- (Ø)
1 mm
- Dim
(Ø) 1 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3318925 ifm Electronic Fibre optics E21107 E21107 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3318925 ifm Electronic Fibre optics E21107 E21107 1 pc(s)
Description
Ifm E21107 reflective light sensor
This text is machine translated.
This text is machine translated.
Hints
For more information on this E21107, please refer to its datasheet under 'downloadable documents'
