Name: ifm Electronic Flow sensor SF111A SF111A 1 pc(s)
Brand: ifm Electronic
SKU: 3321627

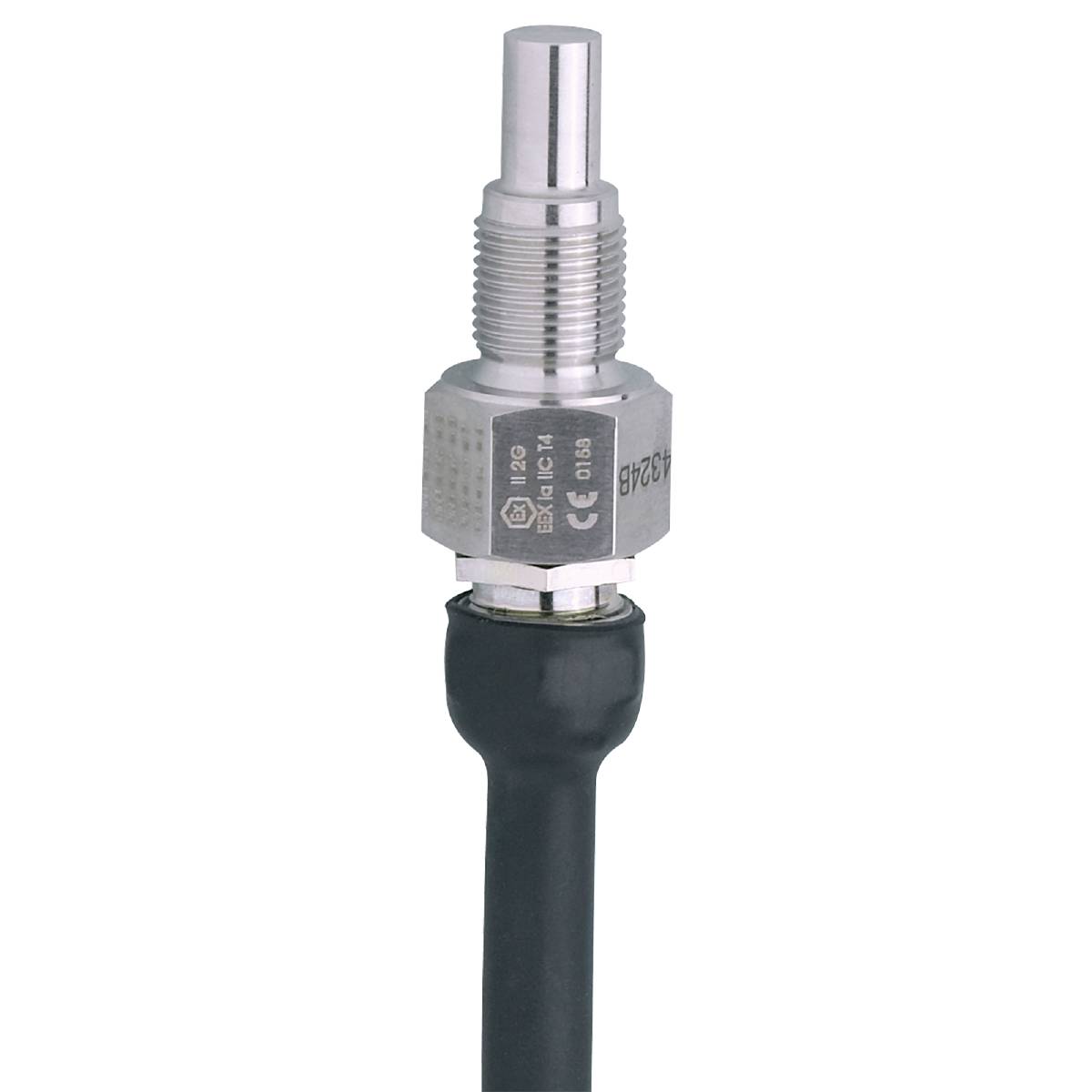

A metal pressure sensor with a cylindrical housing and black cable, likely for monitoring pressure values.

Image similar

Product type

Flow sensor

Packaging type

Piece

Type

SF111A

Connector

Cable, open end

Material

Stainless steel

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Ifm SF111A flow sensor for connection to evaluation unit

For applications in areas where there is a risk of explosion
Reliable monitoring of liquid and gaseous media in pipework
For connection to an evaluation unit
Robust design for use in harsh industrial environments
Very high compressive strength

Technical specifications

Dimensions [mm] M12 x 1
Connection to evaluation electronics: VS2000 Exi (PTB 01 ATEX 2075)
Response time [s]: 1...10
Response time - Gasfoe_Media [s]: 1...10
Response Time - Fluid_Media [s]: 1...10
Rod length L [mm]: 12
Ambient temperature-1 [°C]: -20...60
ATEX equipment identification II 1/2G Ex ia IIC T4 Ga/GB
Compressive strength [bar]: 300
Mounting length EL [mm]: 27
Setting Range - Fluid_Media [cm/s]: 3...300
Adjustment range - Gasmold_Media [cm/s]: 200...2000
Housing: Threaded design
Weight [g]: 354,500
Thread name M12 x 1
Highest sensitivity - Liquid_Media [cm/s]: 3...60
Highest sensitivity - Gasfoe_Media [cm/s]: 200...800
Cable: 6 m, TPE-S; Max. Cable length: 100 m; 5 x 0.34 mm²
Media: Liquid media; Gaseous media
Medium temperature [°C]: -20...60
Medium temperature - Liquid_Media [°C]: -20...60
Medium temperature - Gasfoe_Media [°C]: -20...60
MTTF: 8648
Process connection M12 x 1
IP 67 protection
Temperature gradient [K/min]: 15
Materials in contact with the Medium: 1.4404 (stainless steel / 316L)
APPROVAL: DMT 03 ATEX E 090 X; TIIS TC17434; IECEX BVS 11.0017 X

Packaging type: Piece

Product type: Flow sensor

Type: SF111A

Connector: Cable, open end

Material: Stainless steel

Material properties: rust-proof

Enclosure material: Stainless steel

Cable length: 6 m

Nominal diameter: 12 mm

Media temperature (min.): -20 °C

Max. media temperature: 60 °C

Max. operating pressure: 300 bar

Weight: 354.500 g

Min. ambient temperature: -20 °C

Max. ambient temperature: 60 °C

Length: 27 mm

(Ø): 12 mm

Dim: (Ø x L) 12 mm x 27 mm

Content: 1 pc(s)

Ex Zoning: 2

UKCA: yes
