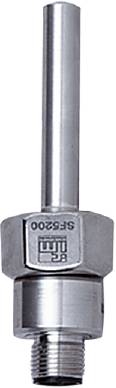

ifm Electronic Flow sensor SF5200 SF5200 1 pc(s)
EAN:
Part number:
Item no:
Product type
Flow sensor
Type
SF5200
Connector
M12
Material
Stainless steel
Sealant
FKM
Datasheet (PDF)
Highlights & Details
Ifm SF5200 flow sensor for connection to evaluation unit
- Reliable monitoring of liquid and gaseous media in pipework
- For connection to an evaluation unit
- Simple process connection using an adapter
- Very high compressive strength
- M12 connector for quick and easy connection
Technical specifications
- Dimensions [mm] M18 x 1.5
- Connection to evaluation electronics: VS3000
- Response time [s]: 1...10
- Rod length L [mm]: 45
- Application: High temperature range
- Compressive strength [bar]: 300
- Setting Range - Fluid_Media [cm/s]: 3...300
- Adjustment range - Gasmold_Media [cm/s]: 200...3000
- Housing: Adapter design
- Weight [g]: 88,500
- Thread name M18 x 1.5
- Highest sensitivity - Liquid_Media [cm/s]: 3...60
- Highest sensitivity - Gasfoe_Media [cm/s]: 200...800
- Media: Liquid media; Gaseous media
- Medium temperature [°C]: -25...80
- MTTF: 8213
- Process connection: M18 x 1.5 internal thread
- IP 67 protection
- Plug connection: Pin layout: 0063 - plug connection: 1 x M12; coding: A; max. Cable length 100 m.
- Temperature gradient [K/min]: 300
- Materials in contact with the Medium: 1.4404 (stainless steel / 316L); O-ring: FKM 80 shore A
- Product type
Flow sensor
- Type
SF5200
- Connector
M12
- Material
Stainless steel
- Sealant
FKM
- Enclosure material
Stainless steel V4A
- Cable length
100 m
- Media temperature (min.)
-25 °C
- Max. media temperature
80 °C
- Max. operating pressure
300 bar
IP67
- Weight
0.0840 kg
- Length
45 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3320319 ifm Electronic Flow sensor SF5200 SF5200 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3320319 ifm Electronic Flow sensor SF5200 SF5200 1 pc(s)
Description
Ifm SF5200 flow sensor for connection to evaluation unit
