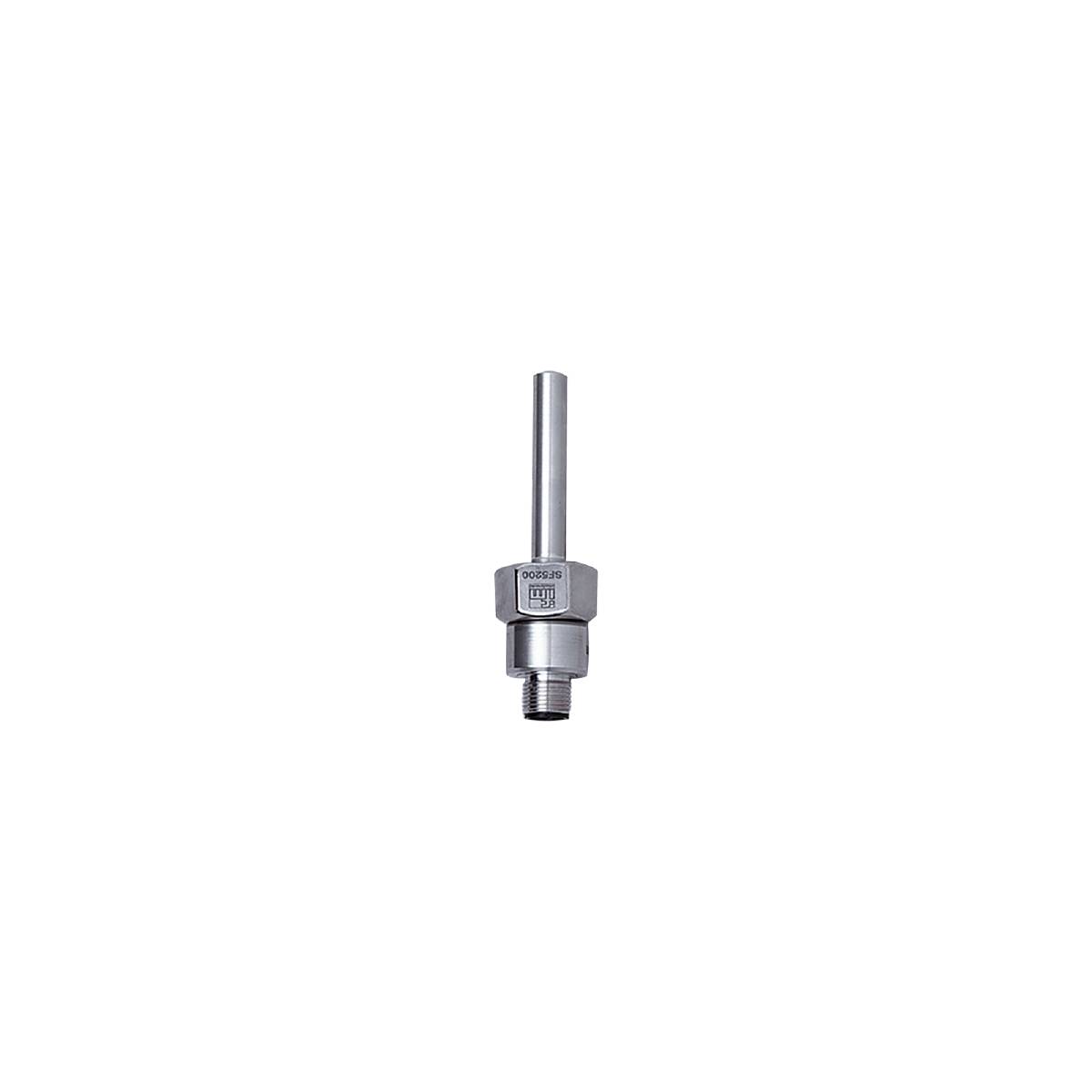

Buy ifm Electronic Flow sensor SF5700 SF5700 1 pc(s)

Image similar

Product type

Flow sensor

Packaging type

Piece

Type

SF5700

Connector

M12

Sealant

FKM

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Reliable monitoring of liquid and gaseous media in pipework
For connection to an evaluation unit
Simple process connection using an adapter
Titanium materials that comes into contact with the media for use in aggressive media
M12 connector for quick and easy connection

Dimensions [mm] M18 x 1.5
Connection to evaluation electronics: VS3000
Response time [s]: 1...10
Rod length L [mm]: 45
Compressive strength [bar]: 100
Setting Range - Fluid_Media [cm/s]: 3...300
Adjustment range - Gasmold_Media [cm/s]: 200...3000
Housing: Adapter design
Weight [g]: 91,000
Thread name M18 x 1.5
Highest sensitivity - Liquid_Media [cm/s]: 3...60
Highest sensitivity - Gasfoe_Media [cm/s]: 200...800
Storage temperature [°C]: -25...80
Media: Liquid media; Gaseous media; Aggressive media
Medium temperature [°C]: -25...80
MTTF: 8213
Process connection: M18 x 1.5 internal thread
IP 67 protection
Plug connection: Pin layout: 0063 - plug connection: 1 x M12; coding: A; max. Cable length 100 m.
Temperature gradient [K/min]: 300
Materials in contact with the Medium: 3.7035 (titanium); O-Ring: FKM 80 shore A
