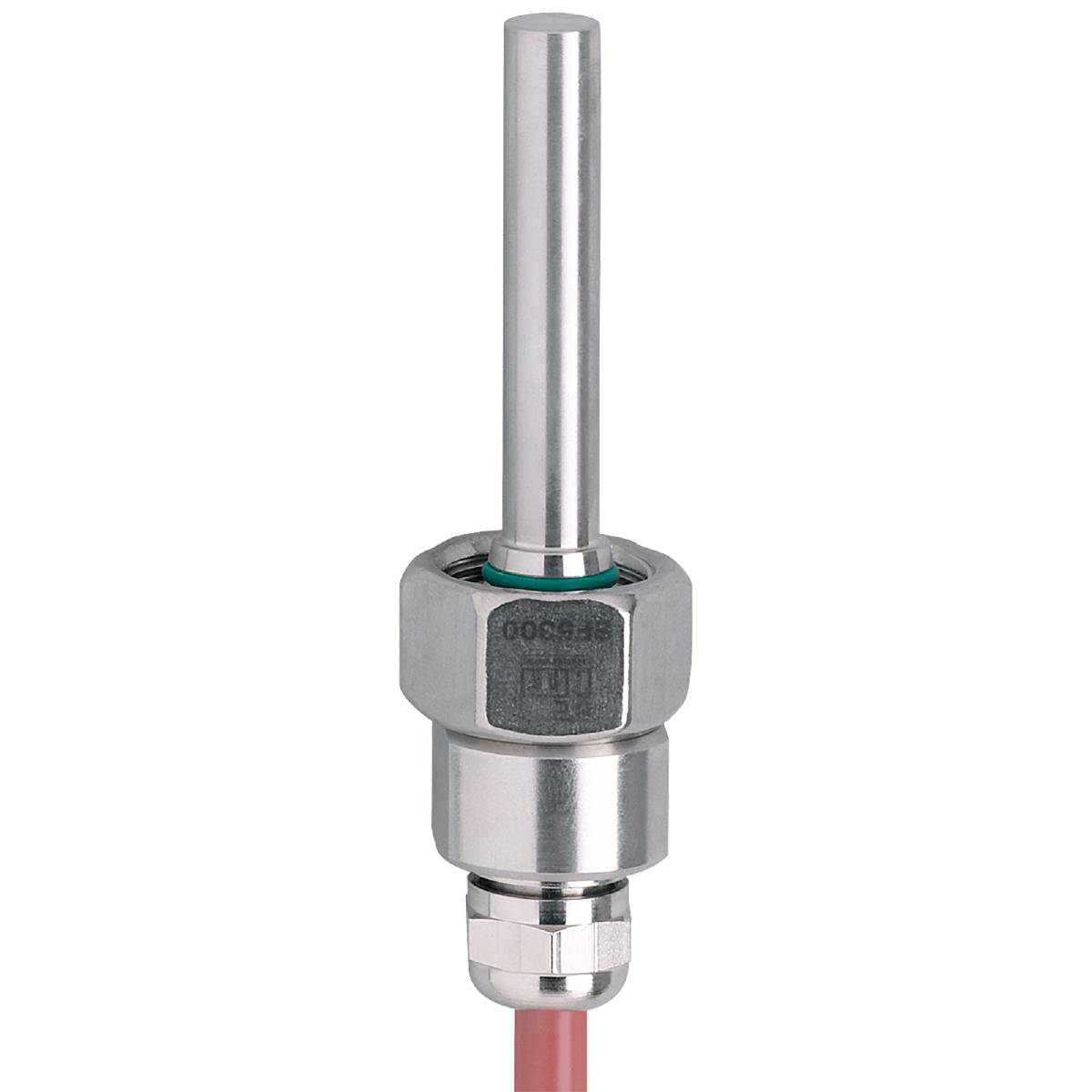

ifm Electronic Flow sensor SF5800 SF5800 1 pc(s)
EAN:
Part number:
Item no:
Product type
Flow sensor
Packaging type
Piece
Type
SF5800
Connector
Cable, open end
Material
Titanium
Datasheet (PDF)
Highlights & Details
Ifm SF5800 current sensor for connection to evaluation unit
- Reliable monitoring of liquid and gaseous media in pipework
- For connection to an evaluation unit
- Suitable for medium temperatures up to 120 °C.
- Simple process connection using an adapter
- Titanium materials that comes into contact with the media for use in aggressive media
Technical specifications
- Dimensions [mm] M18 x 1.5
- Connection to evaluation electronics: VS3000
- Response time [s]: 1...10
- Rod length L [mm]: 45
- Application: High temperature range
- Compressive strength [bar]: 100
- Setting Range - Fluid_Media [cm/s]: 3...300
- Adjustment range - Gasmold_Media [cm/s]: 200...3000
- Housing: Adapter design
- Weight [g]: 449,500
- Thread name M18 x 1.5
- Highest sensitivity - Liquid_Media [cm/s]: 3...60
- Highest sensitivity - Gasfoe_Media [cm/s]: 200...800
- Cable: Cable: 6 m, silicone; max. Cable length: 100 m; 5 x 0.34 mm²
- Storage temperature [°C]: -25...80
- Media: Liquid media; Gaseous media; Aggressive media
- Medium temperature - Liquid_Media [°C]: 0...120
- Medium temperature - Gasfoe_Media [°C]: 0...100
- MTTF: 8096
- Process connection: M18 x 1.5 internal thread
- IP 67 protection
- Temperature gradient [K/min]: 300
- Materials in contact with the Medium: 3.7035 (titanium); O-Ring: FKM 80 shore A
- Packaging type
Piece
- Product type
Flow sensor
- Type
SF5800
- Connector
Cable, open end
- Material
Titanium
- Sealant
FKM
- Cable length
6 m
- Media temperature (min.)
0 °C
- Max. media temperature
100 °C
- Max. operating pressure
100 bar
- Weight
449.500 g
- Min. ambient temperature
-25 °C
- Max. ambient temperature
80 °C
- Length
45 mm
- (Ø)
18 mm
- Dim
(Ø x L) 18 mm x 45 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3321485 ifm Electronic Flow sensor SF5800 SF5800 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3321485 ifm Electronic Flow sensor SF5800 SF5800 1 pc(s)
Description
Ifm SF5800 current sensor for connection to evaluation unit
