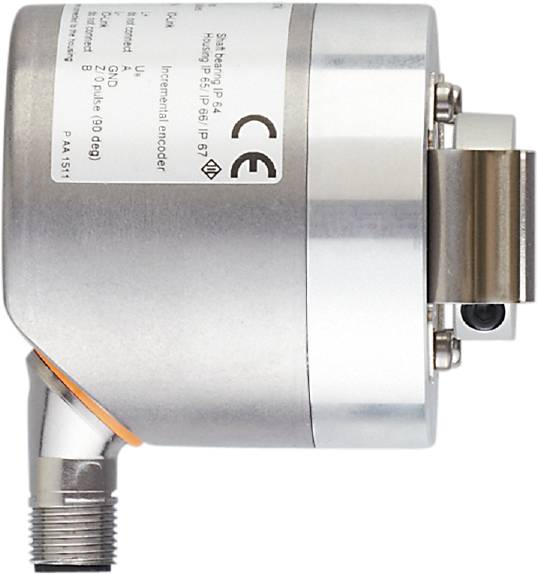

Buy ifm Electronic Incremental Rotary encoder 1 pc(s) RO3101 Magnetic 58.5 mm

Image similar

Product type

Rotary encoder

Model

Incremental

Min. operating voltage

4.75 V DC

Max. operating voltage

30 V DC

Connector

M12

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Dimensions [mm]: Ø 58.5 / L = 69
Sampling system: Magnetic
Resolution: 1...10000; (configurable; factory setting: 1024) dashes
Operational principle-Rotary encoder: Incremental
Accuracy of encoder angle [°]: 0.1
IO-Link Revision: 1.1
Transmission type IO-Link: COM2 (38.4 kBaud)
Ambient temperature-1 [°C]: -40...85
Tightening torque [Nm]: < 0.7; (fixing screw)
Mounting flange: Ø 58.5 mm
Standby delay time [s]: 0.5
Operating voltage [V]: 4.75... 30 DC
Reference temperature torque [°C]: 20
Mounting depth of shaft [mm]: 27
Electrical version HTL/TTL
Weight [g]: 430,000
Communication interface: IO-Link
Short-circuit protection: Yes
Storage temperature [°C]: -40...85
Max. Initial torque [Nm]: 2
Max. Axial shaft offset [mm]: 0.5
Max. Electrical speed [rpm]: 12000
Max. Mechanical rotational speed [rpm]: 12000
Max. Permissible relative humidity [%]: 95; (condensation not permitted)
Min Process cycle time [ms]: 2.3
MTTF: 292
Parameterization options: Resolution; rotational direction; HTL; TTL
Phase offset A and B [°]: 90
Switching frequency [kHz]: 1000
IP 65; IP 66; (housing side: IP 67; shaft side: IP 65)
Protection class III
SIO mode: Yes
Plug connection: Pin layout: 0063 - Plug connection: 1 x M12, radial, can also be used Axial; Coding: A; Grip body: 1.4401 (stainless steel / 316); Max. Cable length: 100 m; (IO-Link: Max. 20 m)
Current consumption: < 150
Reverse polarity protection: Yes
Shaft design: Open hollow shaft on one side
Shaft diameter [mm]: 12
Shaft material: Stainless steel
