Buy ifm Electronic Magneto-inductive flow sensor SM6004 SM6004 Operating voltage (range): 20 - 30 V DC 1 pc(s)

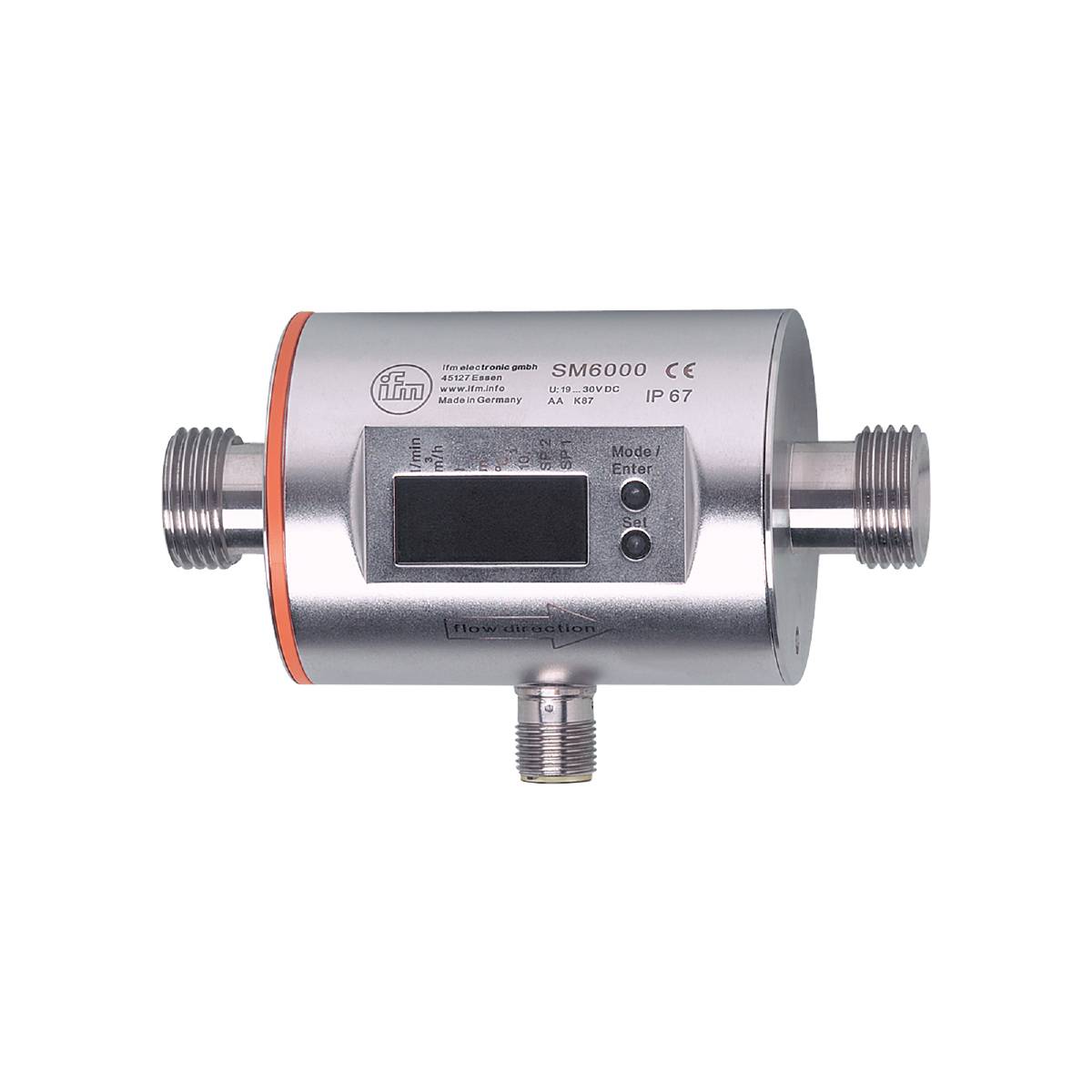

A metallic flow meter with digital display, Model SM6000, from IFM Electronic, shows the connection socket and protection class IP67.

Image similar

Product type

Magneto-inductive flow sensor

Min. operating voltage

20 V DC

Max. operating voltage

30 V DC

Type

SM6004

Operating voltage

20 - 30 V DC

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ifm SM6004 Magnetic Inductive Flow Sensor

Precise measurement of flow, consumption and medium temperature
High accuracy, reproducibility and measurement dynamics
For use in water-cooled cooling circuits
With two precise analogue outputs
Easy-to-read 4-digit LED display

Technical specifications

Analog output current [mA]: 4...20; (scalable)
Analog endpoint - temperature monitoring [°C]: 0...80
Analog end point AEP [gpm]: 1.32...6.6
Analog end point AEP [l/min]: 5...25
Analog start point - temperature monitoring [°C]: -20...60
Analog start point ASP [gpm]: 0...5.28
Analog start point ASP [l/min]: 0...20
Response dynamics T05 > /T09 - Temperature monitoring [s]: T09 = 20 (Q 1 l/min)
Response time - current monitoring [s]: 0.15; (DAP = 0, T19)
Number of analog outputs: 2
Number of inputs and outputs: Number of analog outputs: 2
Display: Display: 6 x LED, green (l/min, m³/h, gpm, gph, °C, °F); Measured values: alphanumeric display, 4-digit; programming: alphanumeric display, 4 digit
Display area [gpm]: -7.92...7.92
Display area [l/min]: -30...30
Display unit: L/min; m³/h; gpm; gph; °C; °F
Compressive strength [MPa]: 1.6
Ambient temperature-1 [°C]: -10...60
Application: For industrial use
Resolution [gpm]: 0.01
Resolution [l/min]: 0.02
Resolution - temperature monitoring [°C]: 0.2
Output signal: Analogue signal
Standby delay time [s]: 5
Special feature: Gold-plated contacts
Operating voltage [V]: 20...30 DC; (according to SEL/PEL)
Damping process value DAP - current monitoring [s]: 0...3
Compressive strength [bar]: 16
Pressure equipment directive: Good engineering practice; suitable for fluid group 2 media; fluid group 1 media on request
Accuracy - temperature monitoring [K]: ± 2.5 (Q > 1 l/min)
Accuracy (within measurement range) - Current monitoring: ± (2% MW + 0.5% MEW)
Total number of outputs: 2
Weight [g]: 481,500
In steps of - temperature monitoring [°C]: 0.2
Storage temperature [°C]: -25...80
MAWP for applications according to CRN [bar]: 17.7
Max. Burden [Ω]: 500
Media: Conductive Liquid Media; Water; Water-based Media
Medium temperature [°C]: -10...70
Measuring range [gpm]: 0.03...6.6
Measuring range [l / min]: 0.1...25
Measuring range - temperature monitoring [°C]: -20...80
Mounting: Connection to pipe by adapter
MTTF: 175
Process connection: Thread connection G 1/2 DN15 flat-sealing
Increment [gpm]: 0.01
Increment [l/min]: 0.02
IP 67 protection
Protection class III
Plug connection: Pin layout: 0001 - plug connection: 1 x M12; code: A; contacts: Gold-plated
Power consumption 120; (24 V)
Overload-proof: Yes
Reverse polarity protection: Yes
Materials in contact with the Medium: 1.4404 (stainless steel / 316L); PEEK; FKM
Repeatability - Current monitoring: ± 0.2% MEW
