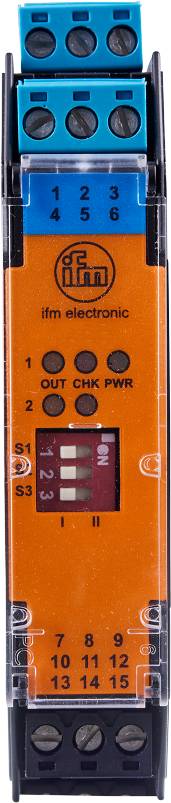

ifm Electronic N0533A N0533A Isolation amplifier 1 pc(s)
EAN:
Part number:
Item no:
Product type
Isolation amplifier
Type
N0533A
Connection
Clamp
Content
1 pc(s)
RoHS-compliant
Yes
Datasheet (PDF)
Highlights & Details
Ifm N0533A Isolation Amplifier for Namur Sensors in accordance with 94/9/EG (ATEX)
- For operating intrinsically safe sensors in hazardous areas
- Reliable short-circuit and circuit failure monitoring
- Simple programming of the output function
- LED-display for monitoring the mode, switching state and function
- Quick and easy installation on standard rails
Technical specifications
- Number of channels: 2
- Display: Switch status: 2 x LED, yellow; operation: LED, green; function: 2 x LED, red
- Ambient temperature-1 [°C]: -20...60
- Application: Short circuit monitoring; line monitoring
- ATEX Device Identification: II (1) G [Ex ia Ga] IIC; II (1) D [Ex ia Da] IIIC
- Operating voltage [V]: 24 DC
- Operating voltage tolerance [%]: -15...25
- Electrical design: Relays; (1 changeover contact can be parameterized for each channel)
- Weight [g]: 188,450
- Connection/terminals ready for assembly: Terminals: ...2.5 mm²
- Contact rating 253 V AC / 2 A / cos phi > 0.7 // 40 V DC / 2 A; (resistive load)
- MTTF: 325
- Switching frequency DC [Hz]: 10
- Mechanical switching cycles: 10 million
- Protection class IP 20
- Current consumption: < 50
- PTB 02 ATEX 2036-3; IECEx PTB 17.0024
- Type
N0533A
- Product type
Isolation amplifier
- Connection
Clamp
- Content
1 pc(s)
- RoHS-compliant
Yes
- Max. ambient temperature
60 °C
- Min. ambient temperature
-20 °C
- Supply voltage (num.)
24 V DC
- Operating voltage U(B)
24 DC
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
IP20
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3320138 ifm Electronic N0533A N0533A Isolation amplifier 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3320138 ifm Electronic N0533A N0533A Isolation amplifier 1 pc(s)
Description
Ifm N0533A Isolation Amplifier for Namur Sensors in accordance with 94/9/EG (ATEX)
