Buy ifm Electronic O2I510 1D/2D code reader O2I510 1 pc(s)

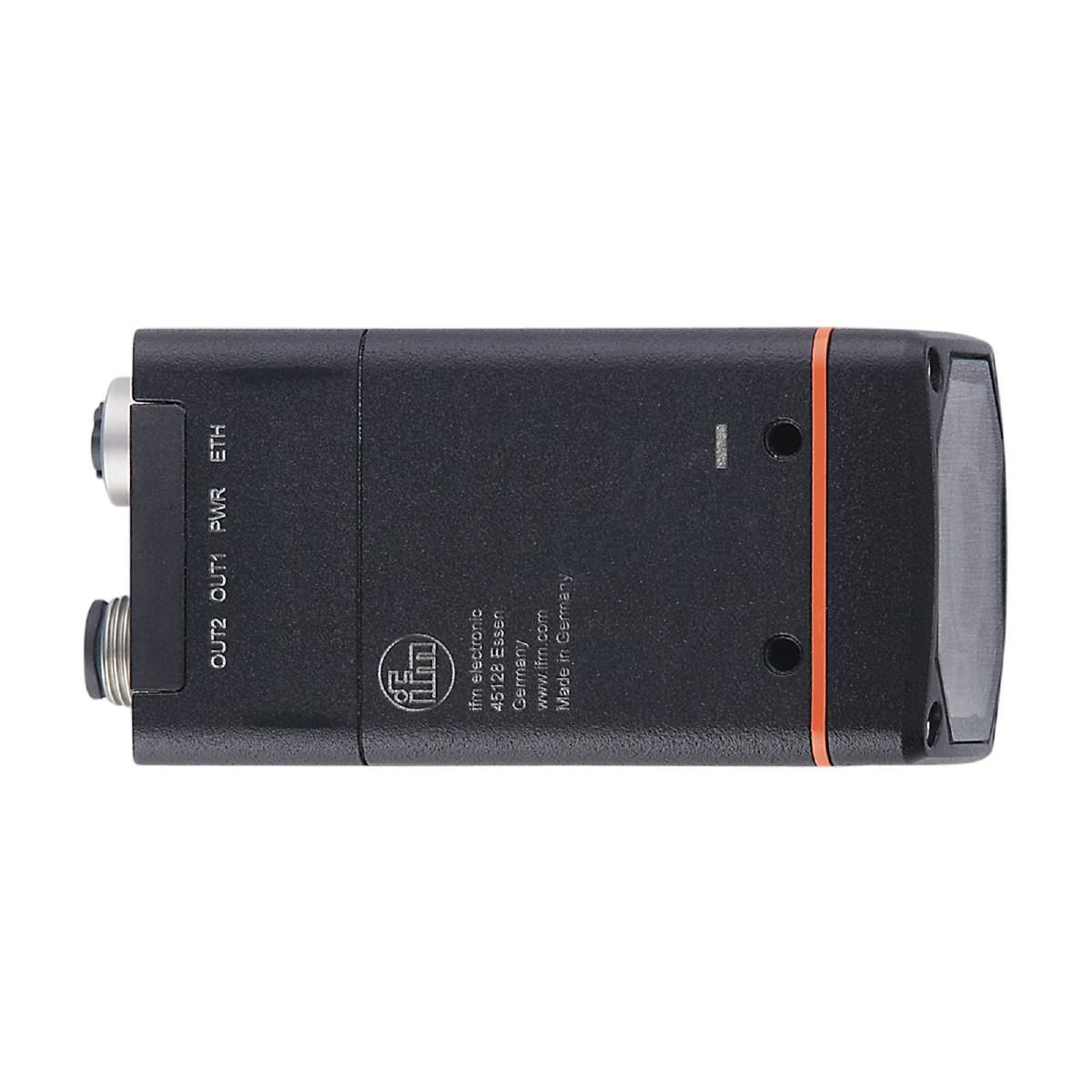

A black, rectangular electronic device with ports and a small display, used for industrial applications.

Image similar

Product type

1D/2D code reader

Type

O2I510

Min. operating voltage

18 V DC

Max. operating voltage

30 V DC

Operating voltage

18 - 30 V DC

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ifm O2I510 1D/2D code reader

Multi-code reader with standard lens
Internal red light illumination
Process interface TCP/IP and Profinet
Multiple codes and lines of text at the same time
Integrated Memory Stick

Technical specifications

Dimensions [mm] 45 x 45 x 86
Number of digital outputs: 2; (configurable)
Number of digital inputs: 1
Number of inputs and outputs: Number of digital inputs: 1; number of digital outputs: 2
Number of Ethernet interfaces - Ethernet: 1
Display: Function: 2 x LED, green; Function: 2 x LED, yellow; Teach-Function: 1 x LED, green; Teach-Function: 1 x LED, yellow
Working distance range [mm]: > 85
Ambient temperature-1 [°C]: -10...50
Short-circuit protection version: Synchronised
OUTPUT FUNCTION 24 V PNP/NPN
Special property: Polfilter
Operating voltage [V]: 18... 30 DC
Image resolution [px]: 1280 x 960
Image sensor: CMOS image sensor, B/W.
Total number of outputs: 2
Weight [g]: 598,300
Communication interface: Ethernet
Short-circuit protection: Yes
Storage temperature [°C]: -40...70
Laser protection class 1
Readable codes: Interleaved 2-of-5; Industrial 2-of-5; Code 39; Code 93; Code 128; Pharmacode; Codabar; EAN8; EAN8 Add-On 2; EAN8 Add-On 5; EAN13; EAN13 add-on 2; EAN13 add-on 5; UPC-a; UPC-a add-on 2; UPC-a add-on 5; UPC-e; UPC-e add-on 2; UPC-e add-on 5; GS1 DataBar Omni directional; GS1 DataBar truncated; GS1 DataBar stacked; GS1 DataBar stacked Omni-directional; GS1 DataBar Limited; GS1 DataBar expanded; GS1 DataBar expanded; GS1 - 128; MSI barcode; ECC200; PDF-417; QR; micro QR; Aztec code; GS1 ECC200; GS1 QR code; GS1 Aztec Code
Readable fonts: Industrial; Document; OCR-A; OCR-B; Pharma; Semi; Universal; Dot Print
Type of light: Red light
Max. Read rate [Hz]: 40
Max. Slope to image plane [°]: 45
max. Voltage drop switch output DC [V]: 1
Lens type: Standard
Omni-directional reading: Yes
Parameterization options: Teach key; via PC with ifm Vision Assistant
Photobiological safety: Free group; (EN 62471)
Polarising filter: Yes
Protocol - Ethernet: TCP/IP; PROFINET
Protection system: IP 65
Protection class III
Plug connection: Ethernet - Pin layout: 0139 - Connector: 1 x M12; Coding: D; Grip body: Stainless steel; Seal: FKM / supply - Pin layout: 0063 - Connector: 1 x M12; Coding: A; Body: Stainless steel
Power consumption < 600; (24 V DC)
Power rating per output [mA]: 100
Trigger: External; 24 V PNP/NPN (IEC 61131-2 type 3); TCP/IP; PROFINET; internal
Overload-proof: Yes
Transfer rate – Ethernet 10 Mbit/s; 100 Mbit/s.
Transmission standard - Ethernet: 10Base-T; 100Base-TX
Reverse polarity protection: Yes
Usage type - Ethernet: Parameterization; data transfer
Wavelength [nm]: 617
Material seal: FKM
