Buy ifm Electronic O5D150 Optical proximity sensor 1 pc(s) Max. range (open field): 2 m

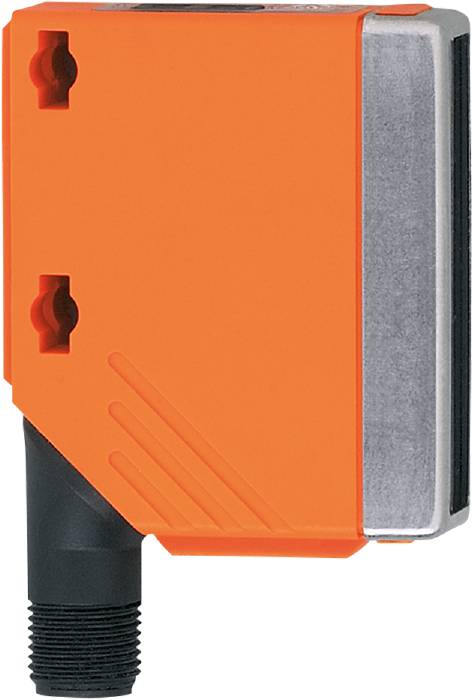

A rectangular orange device with a grey metal strip along the side and a protruding black cable at the bottom.

Image similar

Packaging type

Piece

Product type

Optical proximity sensor

Min. operating voltage

10 V DC

Max. operating voltage

30 V DC

Max. range

2 m

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ifm O5D150 Optical Distance Sensor

Very high range through the light-running time measurement
Reliable background suppression and color-independent detection
With display and push buttons for precise switch point setting
Laser protection class 1 for the requirements of the automotive industry
Reliable detection of glossy surfaces
Comfortable communication via IO-Link

Technical specifications

Dimensions [mm] 56 x 18.2 x 46.8
Number of digital outputs: 2
Number of inputs and outputs: Number of digital outputs: 2
Display: Switching status: LED, yellow switching output PIN 4; operation: LED, green; display: Alphanumeric display, 3-digit
Display unit: Cm
IO-Link Revision: 1.1
SDCI standard IEC 61131-9
Transmission type IO-Link: COM2 (38.4 kBaud)
Ambient temperature-1 [°C]: -25...60
Short-circuit protection version: Synchronised
Output function: NO / NC (Antivalent)
Optics alignment: Lateral look
Special feature: Background suppression
Operating voltage [V]: 10...30 DC; ("supply class 2" according to cULus)
Electrical version: PNP
Hysteresis detection range [%]: < 4
Housing: Square
Total number of outputs: 2
Weight [g]: 61,000
Background suppression [m]: < 20
Background suppression available: Yes
Communication interface: IO-Link
Short-circuit protection: Yes
Laser protection class 1
Type of light: Red light
Light spot dimensions are valid for: 2 m.
Max. Foreign light security [klx]: 10; (on the object)
Max. Light spot diameter [mm]: 5
Measuring range [m]: 0.03...2
Measuring frequency [Hz]: 33
Min Process cycle time [ms]: 6.6
MTTF: 151
Profile: Smart sensor: Sensor identification; binary data channel; process value; sensor diagnostics
Analogue process data: 1
Binary process data: 1
Test mark (special cases): CCC
Switching frequency DC [Hz]: 11
Protection class IP 65; IP 67
Protection class III
SIO mode: Yes
Plug connection: Pin layout: 0001 - plug connection: 1 x M12; coding: A.
Power consumption 75; (24 V)
Power rating per output [mA]: 100
Type. Life span [h]: 50000
Overload-proof: Yes
Reverse polarity protection: Yes
Wavelength [nm]: 650
